Pagodazoa

Advanced Reefer
Location
Suffolk

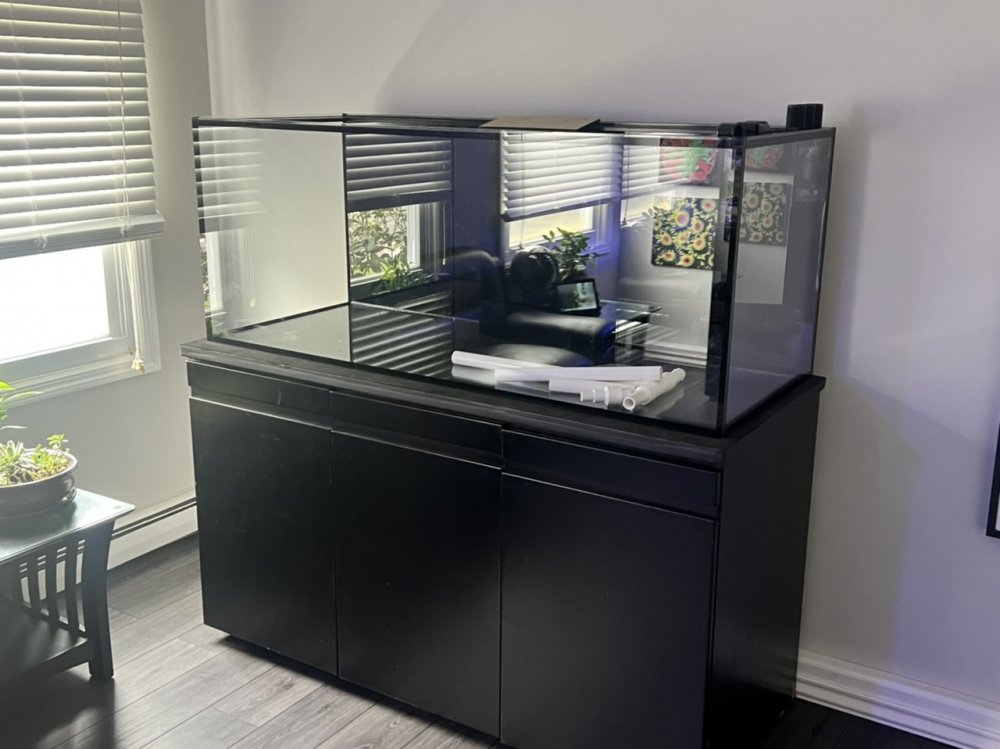

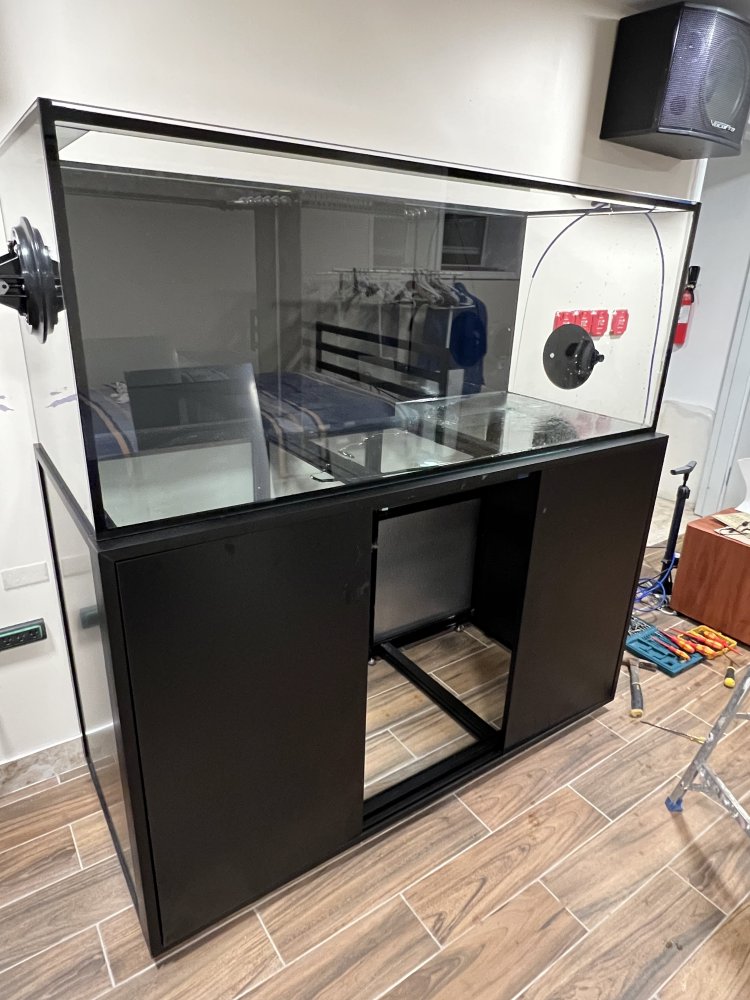

I saw a deal on OfferUp for a Redsea Tank and stand but came in second to line. They had a failed move attempt and cracked the tank so I ended up getting the stand and sump for free. Redsea is a pain when it comes to ordering individual pieces especially if you’re not the original owner so I ended up going with the SCA 150. The tank came in beautifully and I’m happy with the choice. I could’ve went custom to avoid the stand overhanging past the tank but it would’ve cost double if not triple the price. Only minor thing I saw with the tank was the front panel of the overflow extends past one of the side panels by a little bit.


Pagodazoa

Advanced Reefer
Location
Suffolk

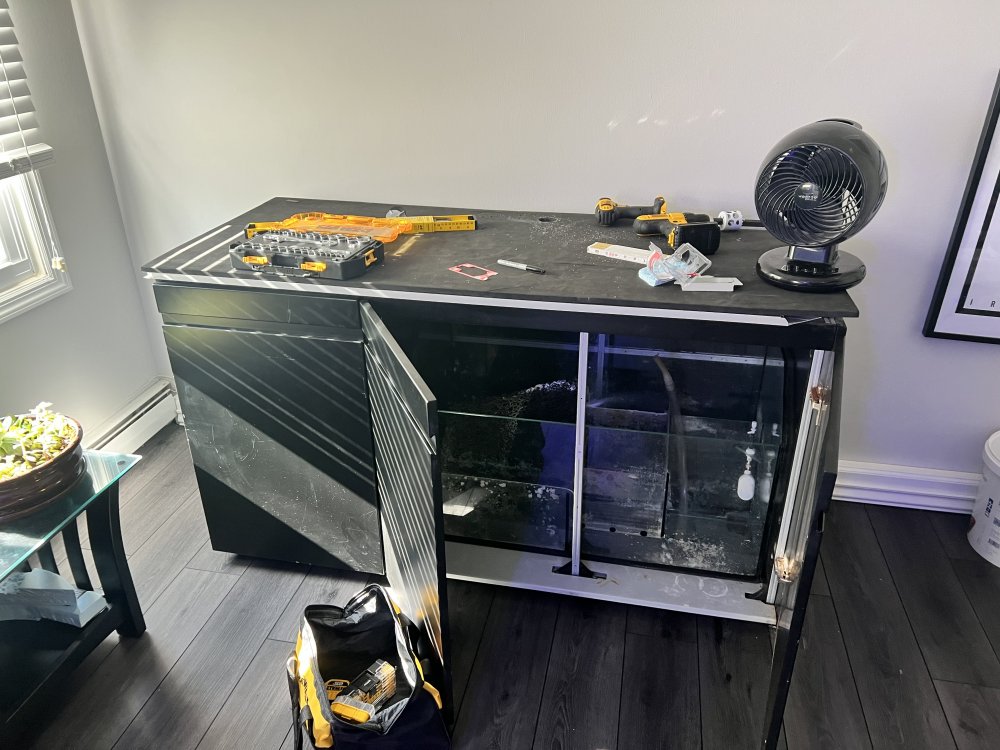

Here’s when I first picked up the stand, had to drill different bulkhead holes for the tank.


Attachments

  • FB03ADAF-B27D-4C04-8D5F-F50A6204F238.jpeg
    130.8 KB · Views: 0

Pagodazoa

Advanced Reefer
Location
Suffolk
Tank is gonna be fish only, started making the rock scape over the weekend using Marco mortar kit. Made this cave with a bunch of openings and I’m pretty pleased with it. I tried to lift it and it shifted a little so I have more mortar on the way to shore it up.


Attachments

  • 7194AC6F-5E12-4EAA-92C2-C8C9DC6F9F6F.jpeg
    216.5 KB · Views: 0
  • AA0E48B0-04CE-4F61-BB84-6599123FB9F8.jpeg
    207.9 KB · Views: 0
  • 9613F12F-E0DC-4454-9DC1-1752399DBAB0.jpeg
    162.1 KB · Views: 0

Pagodazoa

Advanced Reefer
Location
Suffolk

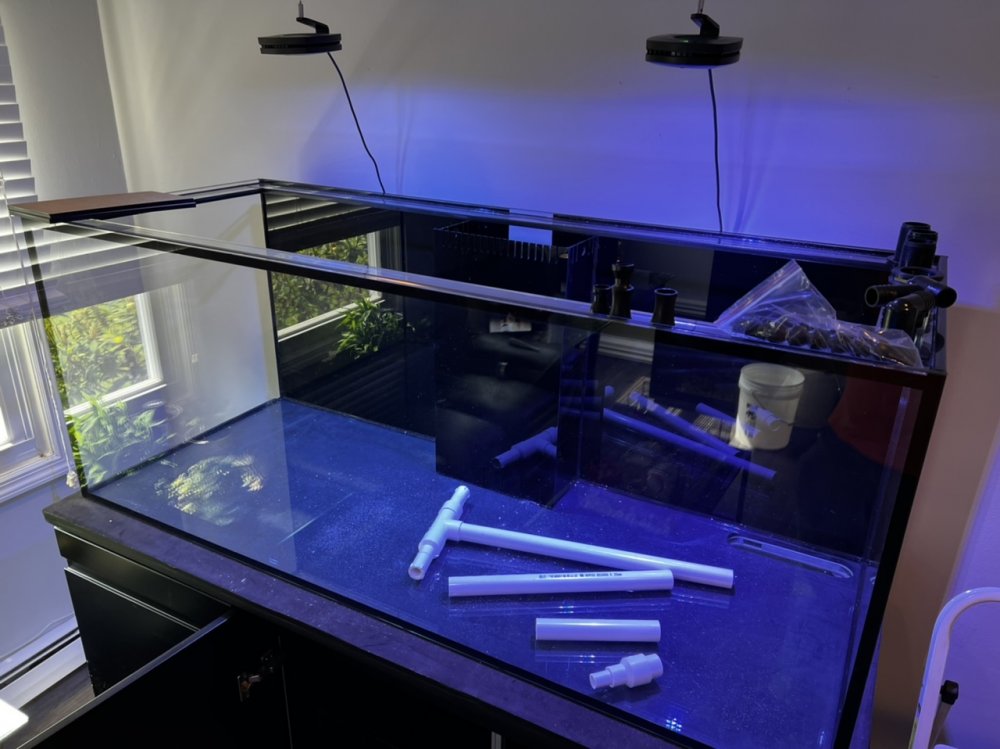

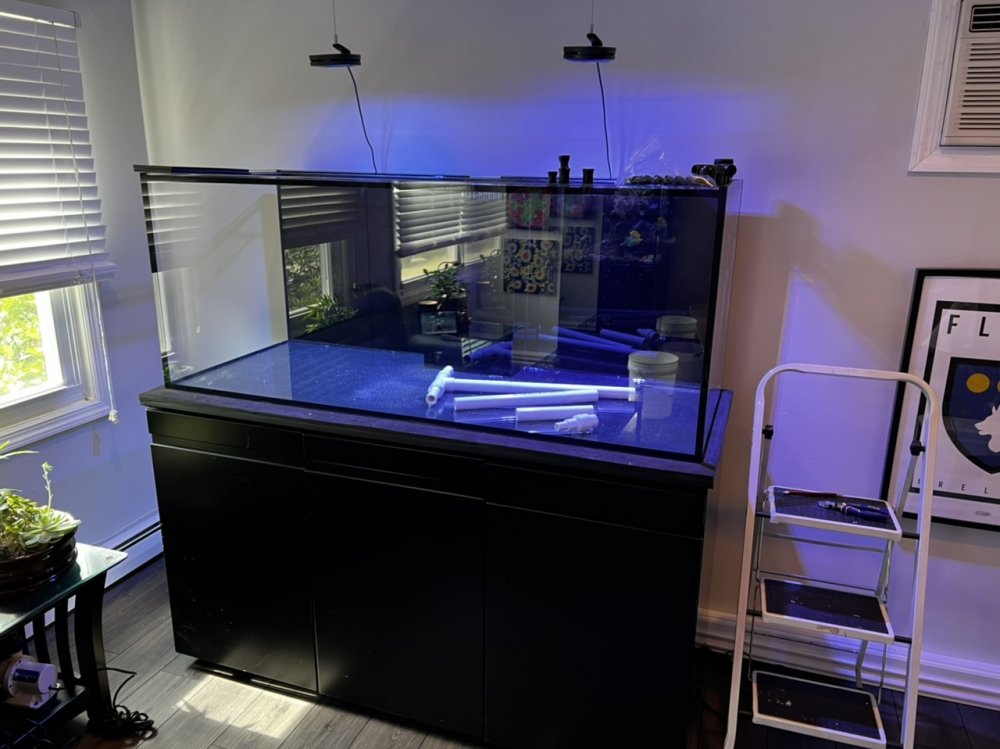

Hung a couple AI primes over the weekend and had to ream out the holes in the stand. I miscalculated the hole size because of the washer that goes around the bulkhead. Sad to admit it ended up talking me about two hours between cleaning up the plastic shavings and drywall dust. Next step is the plumbing


Attachments

  • 17080A0F-599D-47FA-8E79-E7F334EDA382.jpeg
    96.3 KB · Views: 0
  • 40FE4A0F-5364-48B2-AF8F-3006F9421BC3.jpeg
    95.7 KB · Views: 0

Pagodazoa

Advanced Reefer
Location
Suffolk

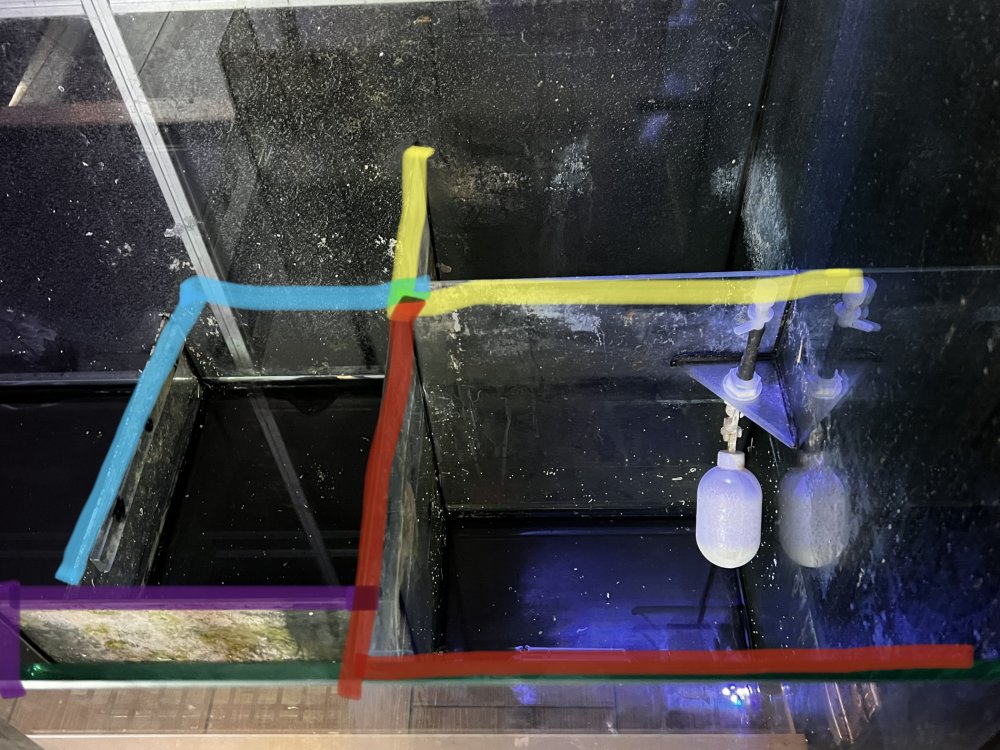

Anyone familiar with the sump detail on the Red Sea S-650? I believe the yellow is where the water drains into but from my understanding this set up normally doesn’t use filter socks. I’m trying to get sock holders with bulkheads but the quiet ones unfortunately don’t fit the 5 7/8” width. The light blue is where the roller mat area would be I think. The purple is the filter media space and the red is the return pump/ato. Not sure how the ato works either. I’ll probably put a reservoir under the power station and drill a hole to the sump side for the water line and most likely tunze sensors.


Attachments

  • 874C113F-414C-4556-BEF0-126665121A1A.jpeg
    156.4 KB · Views: 0

Pagodazoa

Advanced Reefer
Location
Suffolk
The largest area I’d put the skimmer and maybe some media brick in there or algae scrubber


Attachments

  • 37EFC7B3-2030-4C4E-BB13-AF579962614B.jpeg
    135 KB · Views: 0

NL146

reef obsessed
Manhattan Reefs
Supporter
Location
Nassau

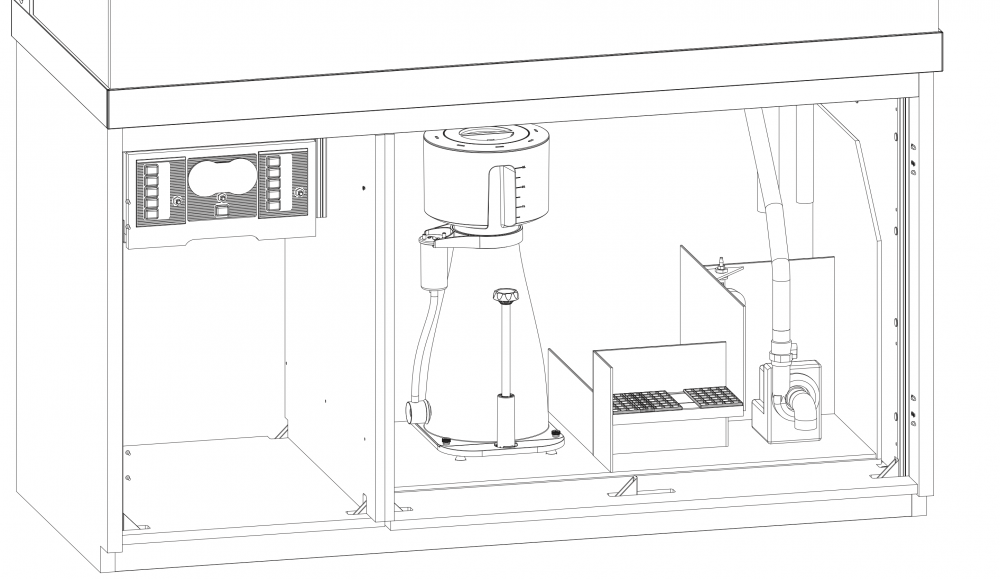

I grabbed the image below from the redseafish.com website. The yellow section is the drain, the section with the float valve is the return. The s-650 has a fresh water reservoir at the rear of the display tank that connects to the float valve so you could always connect to any appropriate container. Skimmer is on the left. I had this tank and plumbed in a Theiling roller mat in the blue section - had it resting on a stand. I had some rubble in that section too, under the rollermat.



Pagodazoa

Advanced Reefer
Location
Suffolk
I grabbed the image below from the redseafish.com website. The yellow section is the drain, the section with the float valve is the return. The s-650 has a fresh water reservoir at the rear of the display tank that connects to the float valve so you could always connect to any appropriate container. Skimmer is on the left. I had this tank and plumbed in a Theiling roller mat in the blue section - had it resting on a stand. I had some rubble in that section too, under the rollermat.

View attachment 320289
Very helpful thank you
