235 Gallon Flat Back Hexagon

Nesty427

Member
Manhattan Reefs
Rating - 100%
30   0   0
Location
Bronx, New York
Tank was up and running as a freshwater moved fish to a bigger 500 gallon and will now combine my two smaller reef tanks in to one. I have made my 125 gallon tank into the new sump.

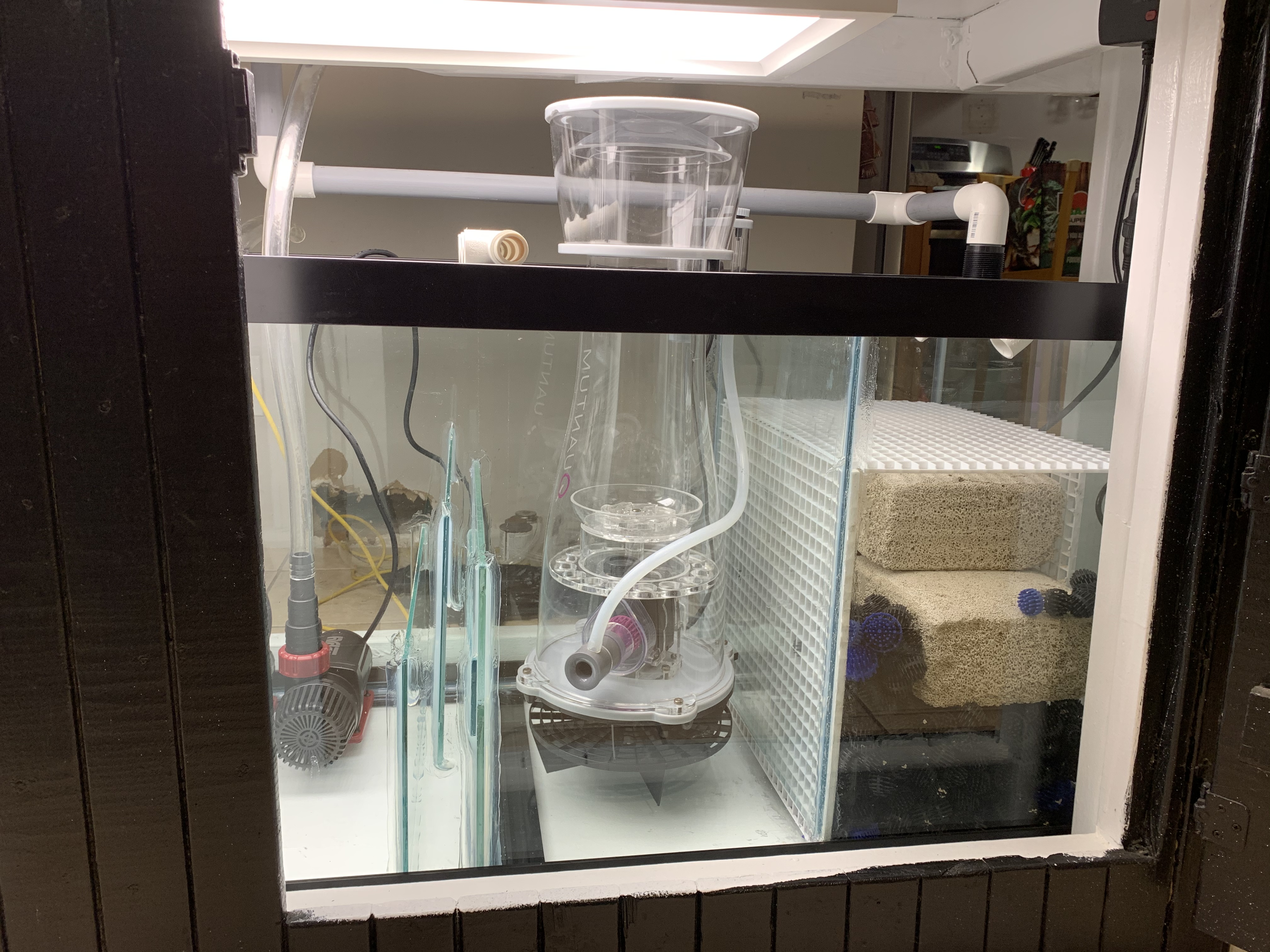

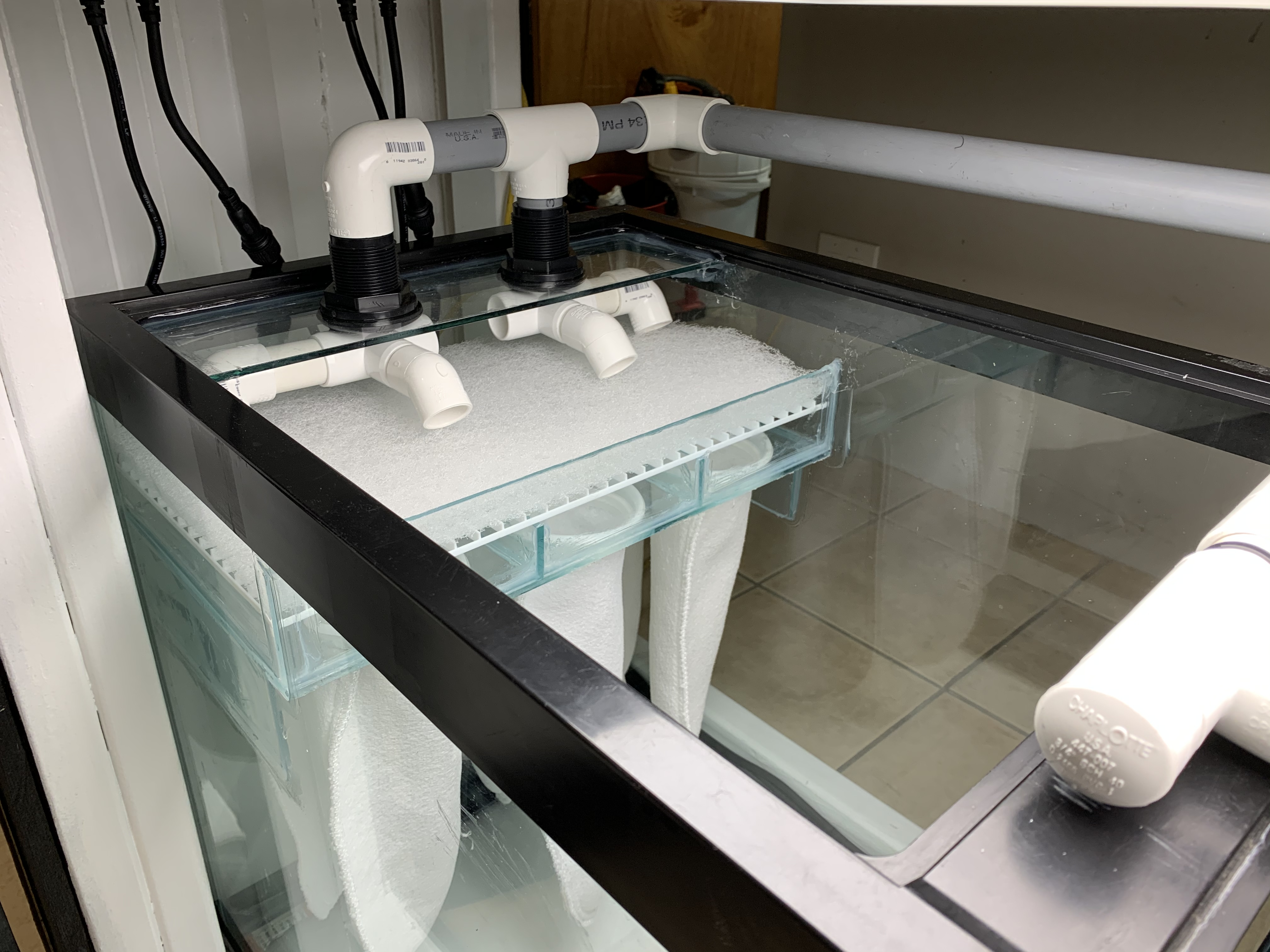

Sump will have a refugium section (far right) return pumps in the middle than the skimmer section and then a wet dry/ bio filter section

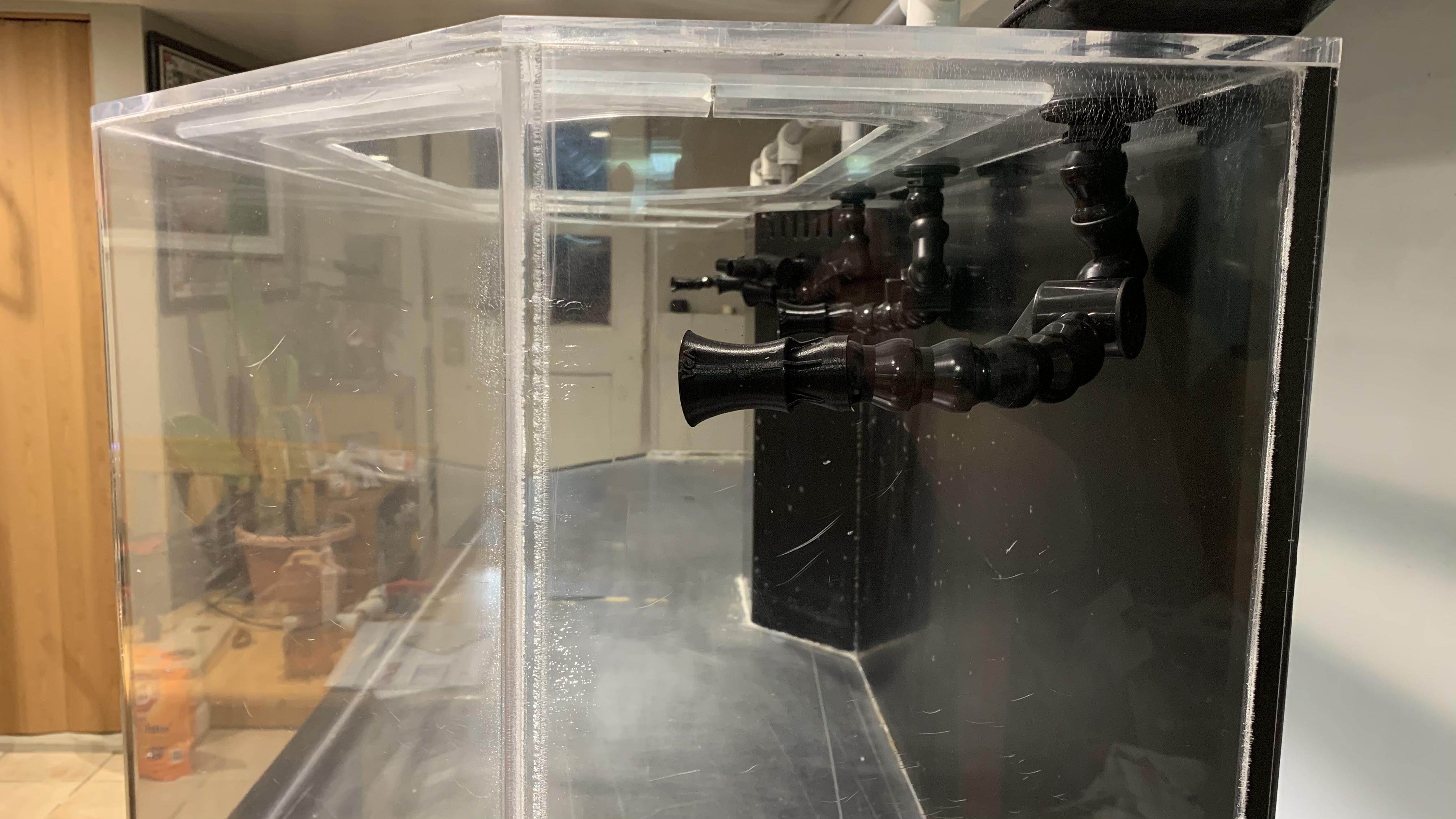

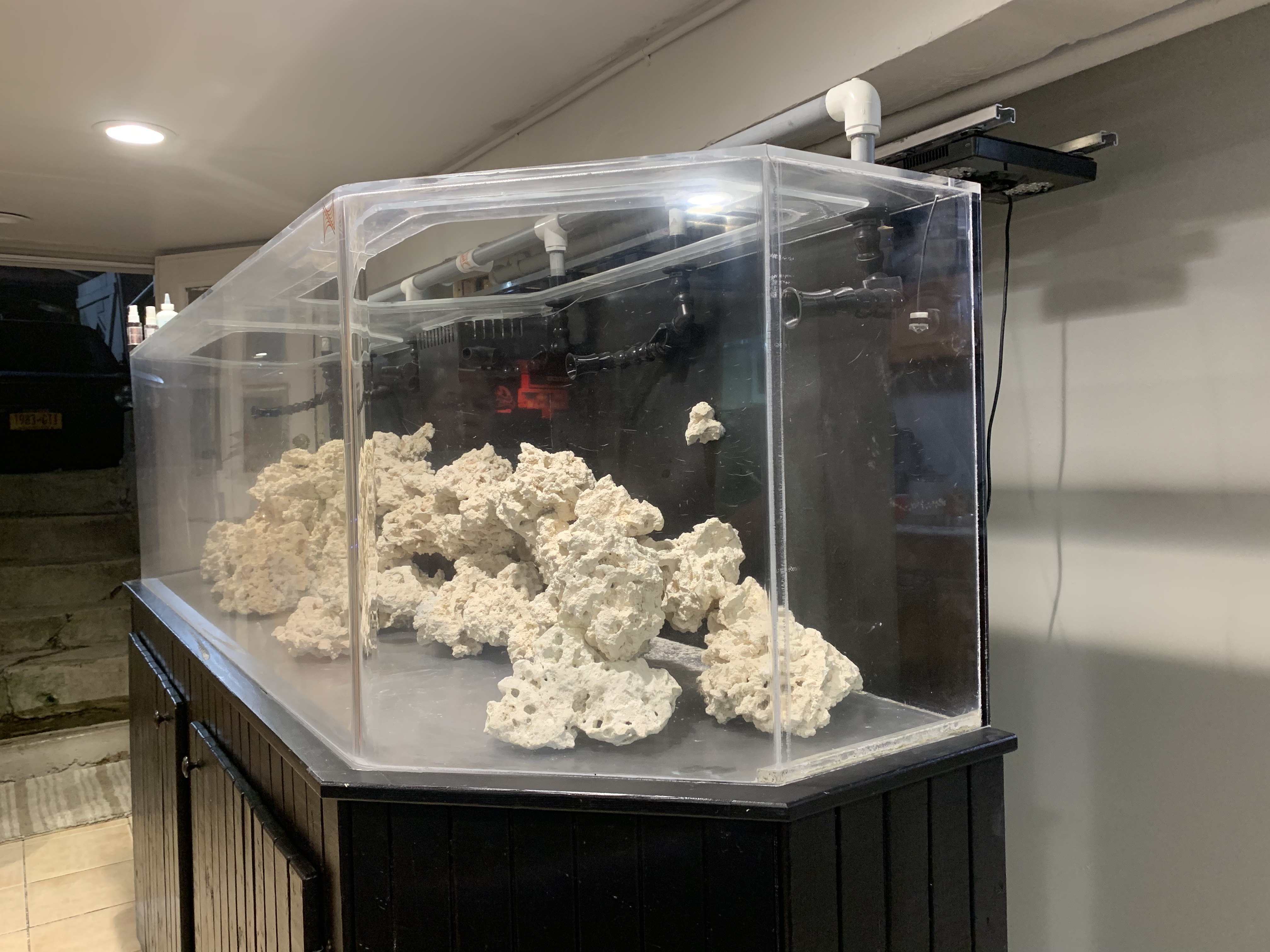

Tank is 8 feet wide 2 feet deep & 2 feet tall. Piping on top is for the closed loop system


Nesty427

Member
Manhattan Reefs
Rating - 100%
30   0   0
Location
Bronx, New York

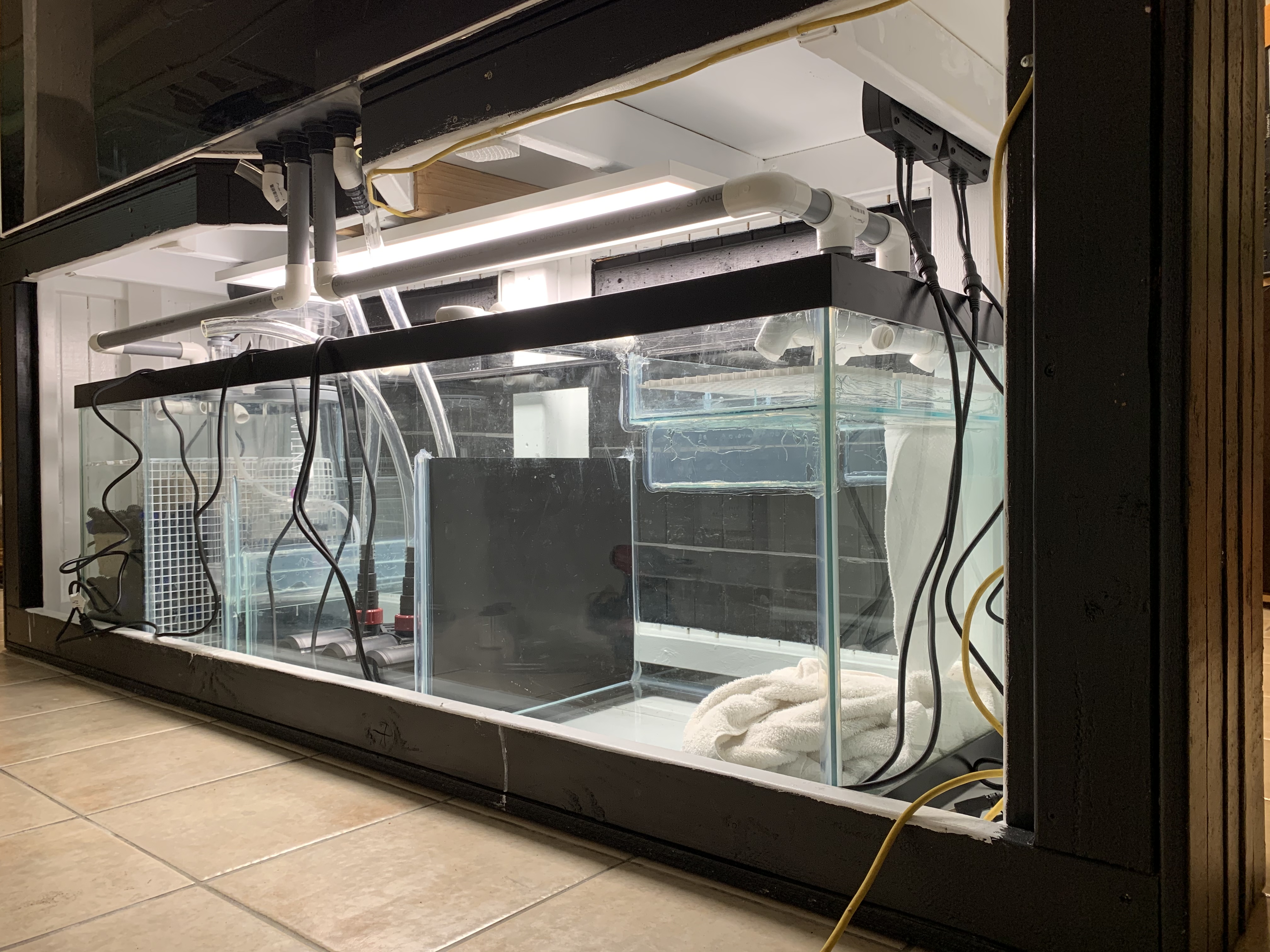

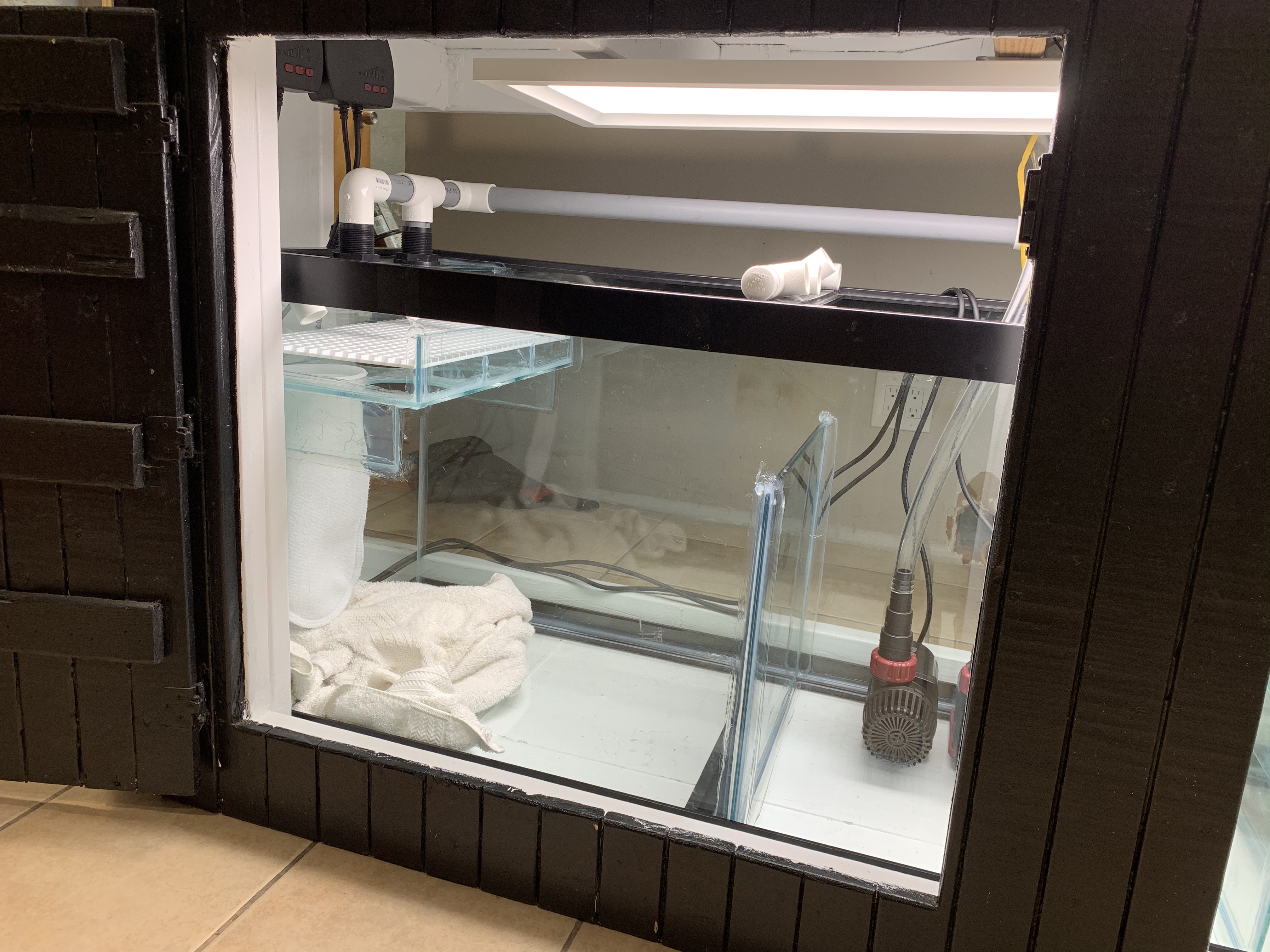

Sump in stand
view from back of stand will reinstall supports when pluming is done

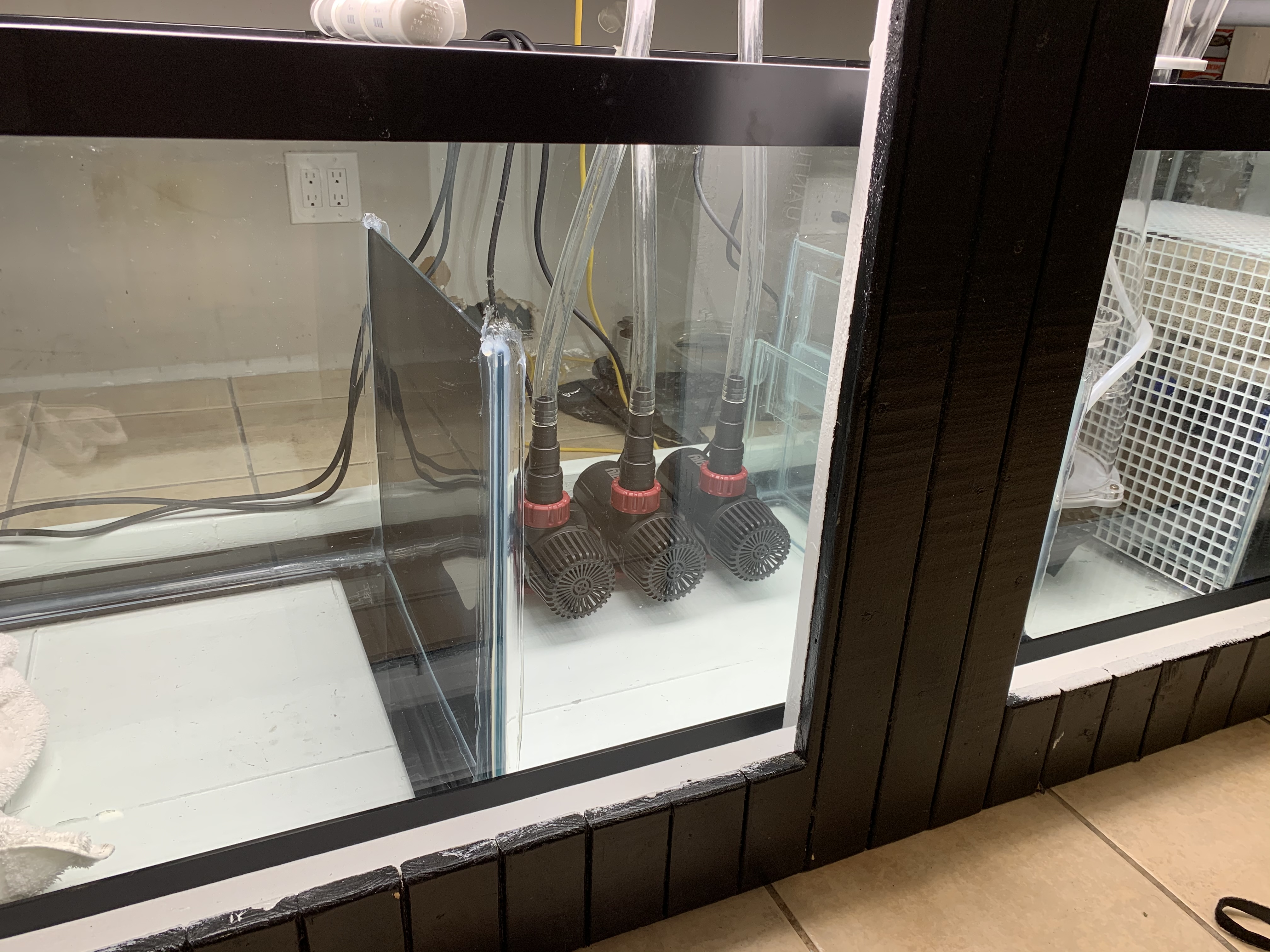

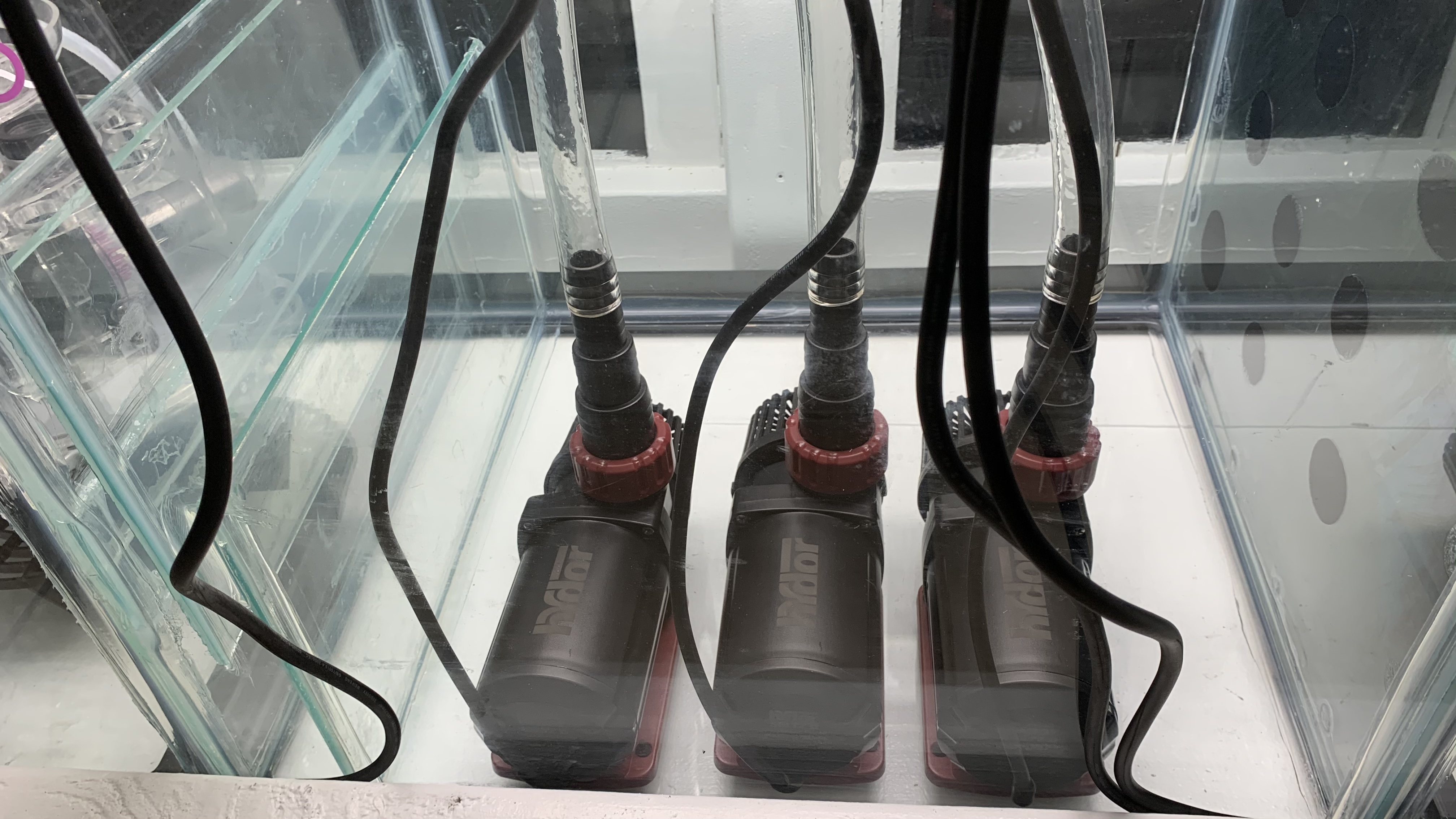

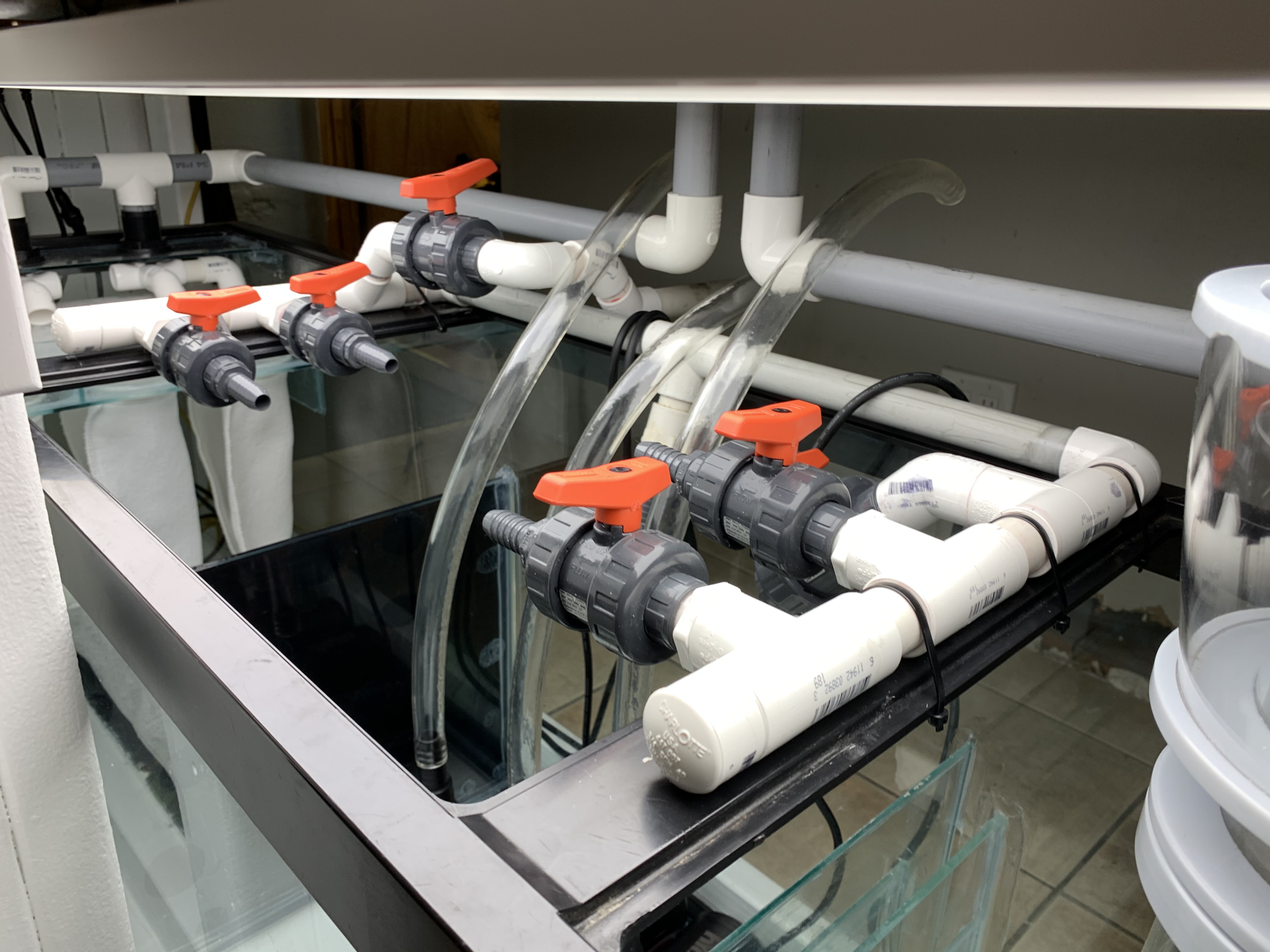

middle pump will run the manifold two outer ones are the return pumps


tsouth

Active member
Manhattan Reefs
Rating - 0%
0   0   0

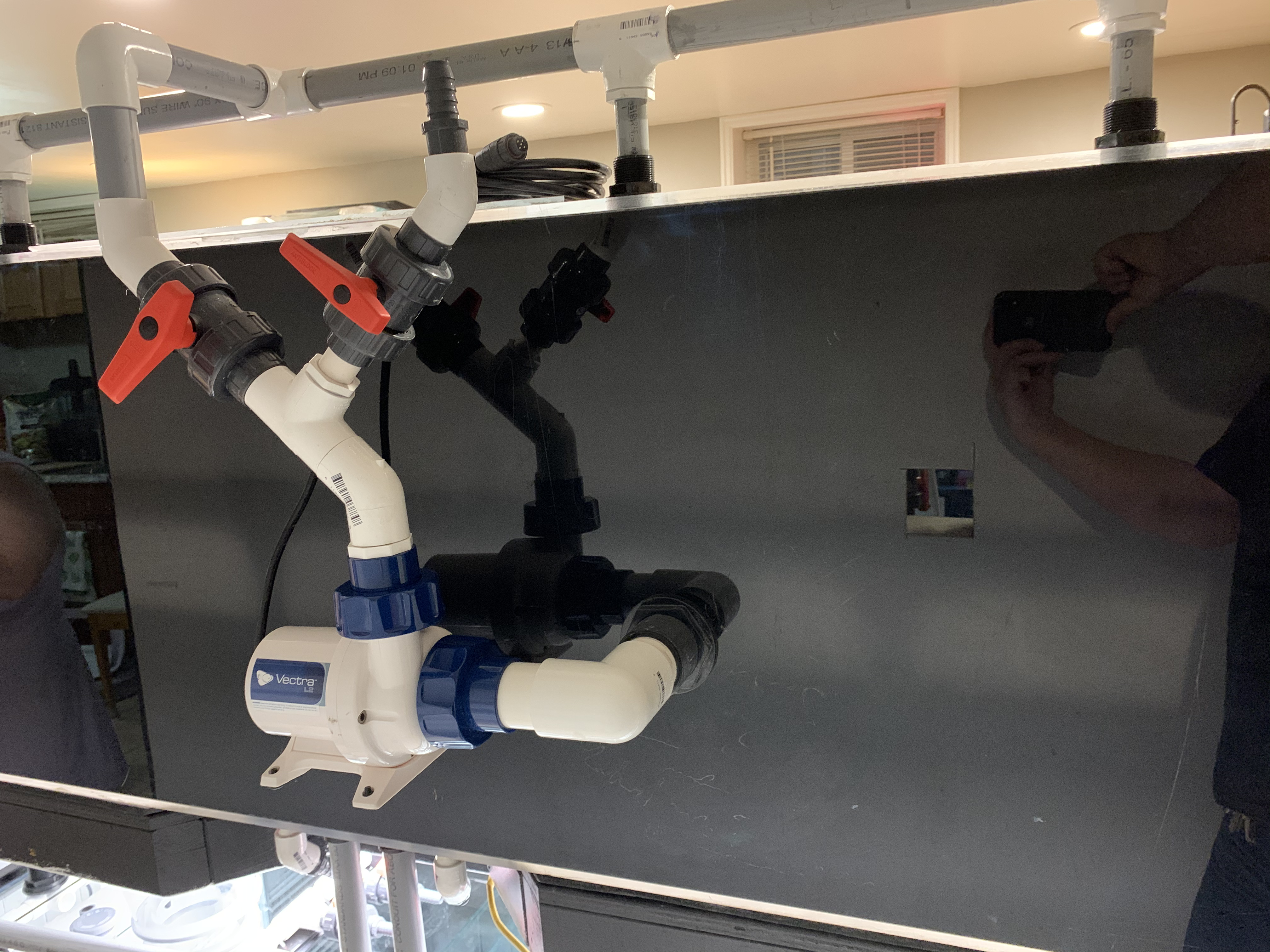

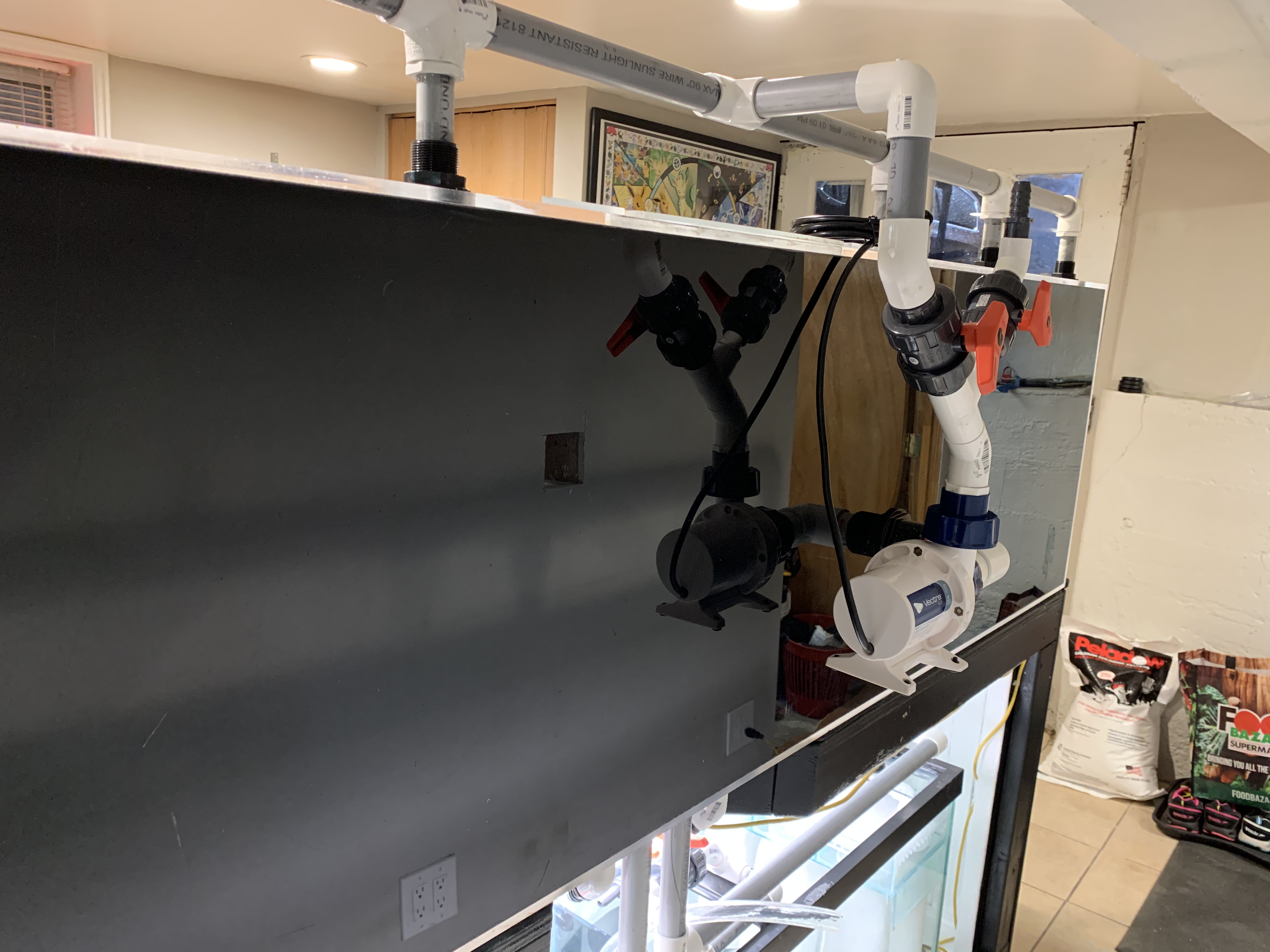

Is that vectra going to be supported by anything? The one hanging behind the tank? I'd be worried about vibrations and any stress on the bulkheads there


MIKE NY

Two Decade Club
Manhattan Reefs
Rating - 100%
202   0   0
the only possible problem I see is if/when the Vectra has to be replaced there isn’t a valve on the inlet side. You’ll have to bring the water level down below the bulkhead .... other than that it’s looking good.


Sent from my iPad using Tapatalk


Nesty427

Member
Manhattan Reefs
Rating - 100%
30   0   0
Location
Bronx, New York

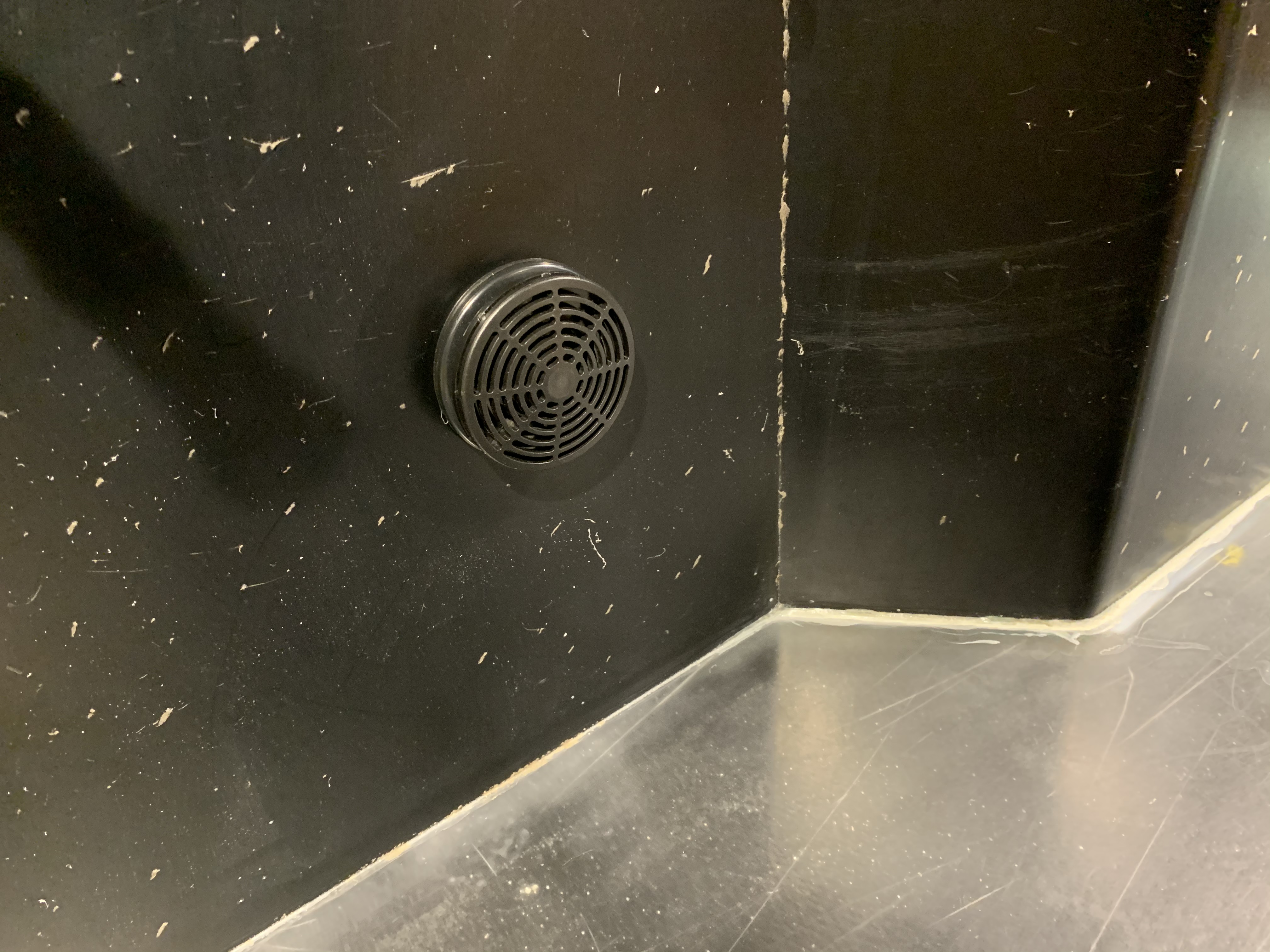

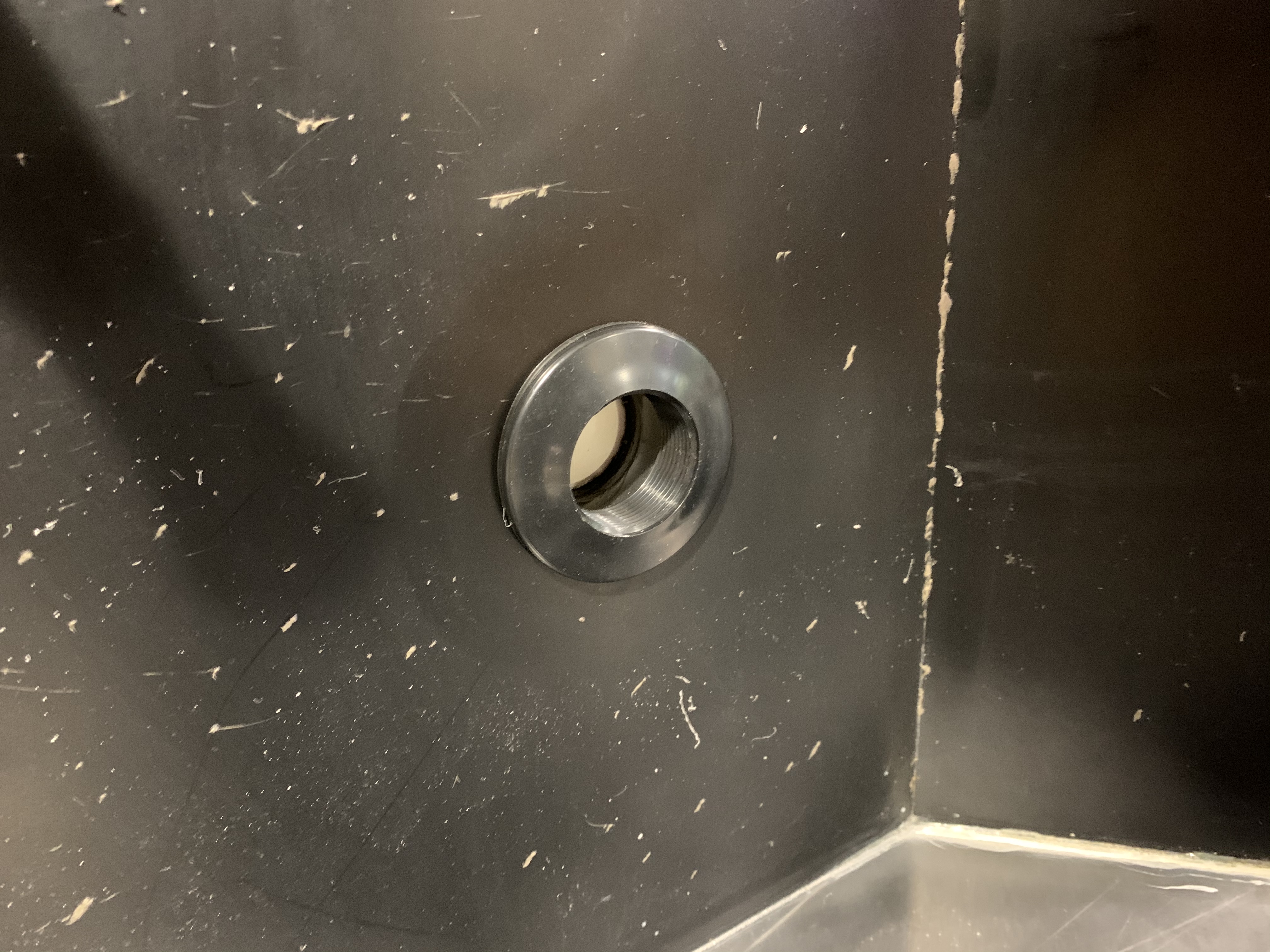

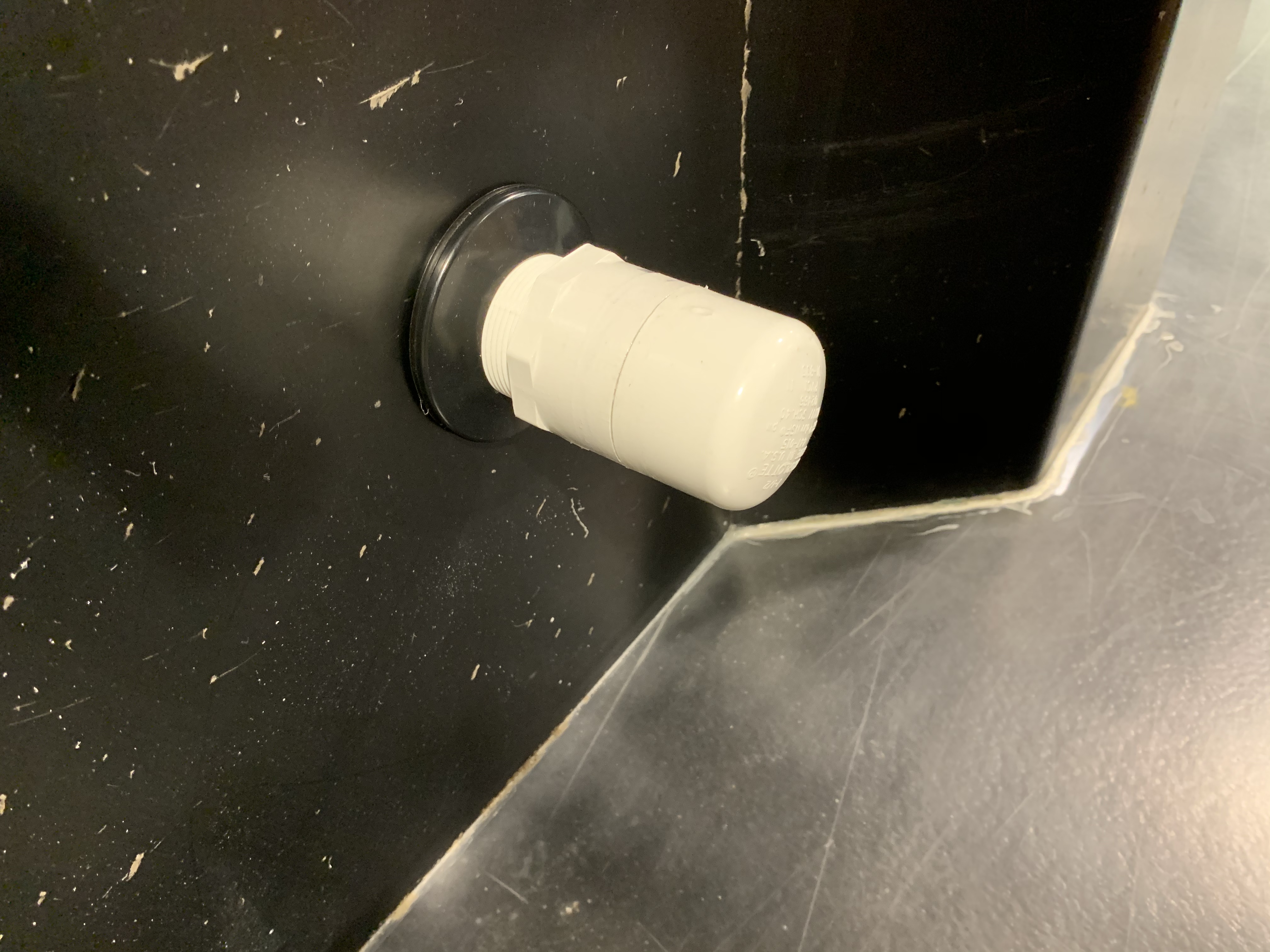

I wanted to put a ball valve but I didn’t have the room behind the tank so the bulkhead I used has threads so I can in screws the strainer and screw in a cap


Nesty427

Member
Manhattan Reefs
Rating - 100%
30   0   0
Location
Bronx, New York

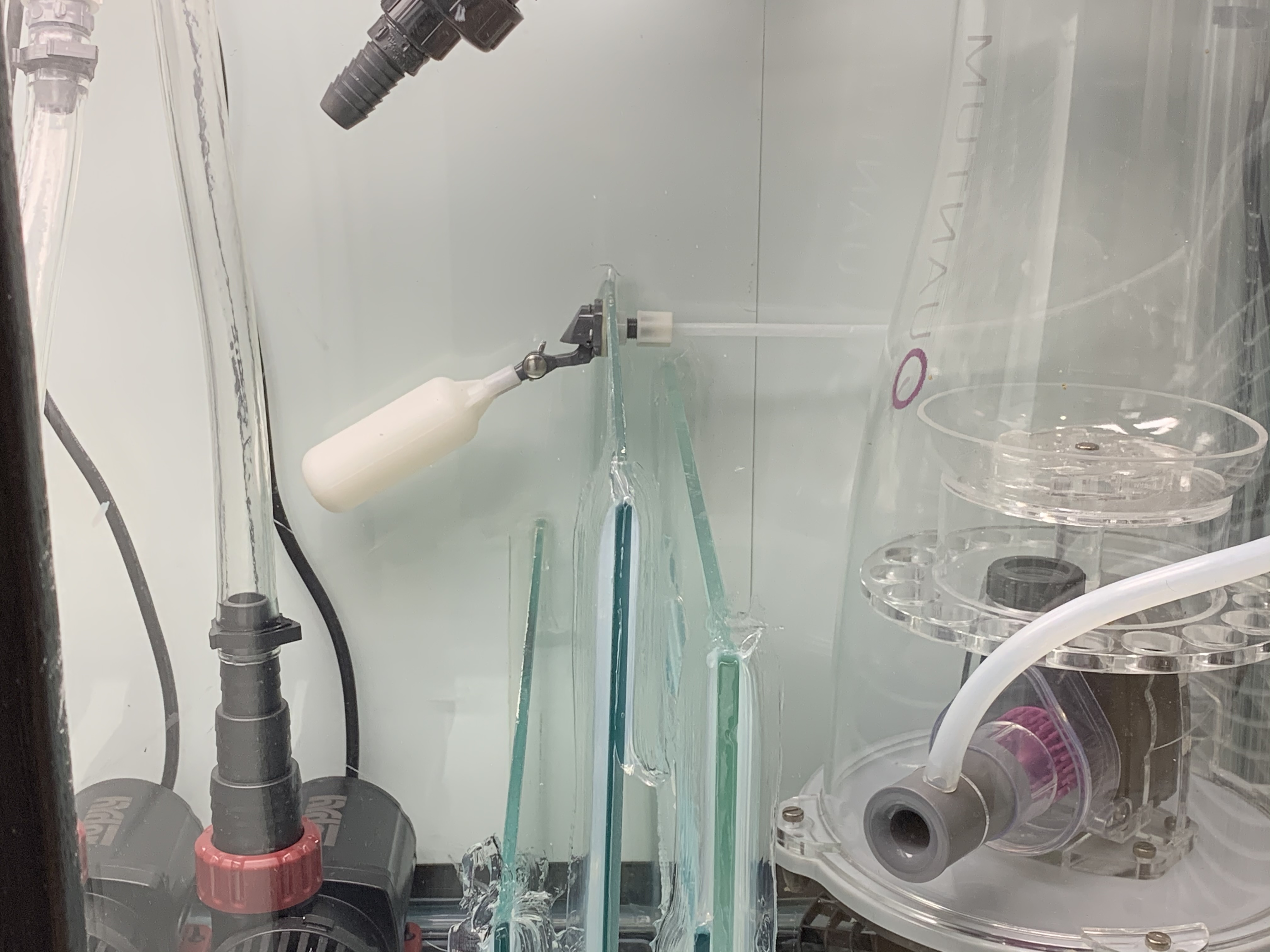

Drilled a 12mm hole in the glass and installed an adjustable float that will be connected to the RODI to control the sump water level

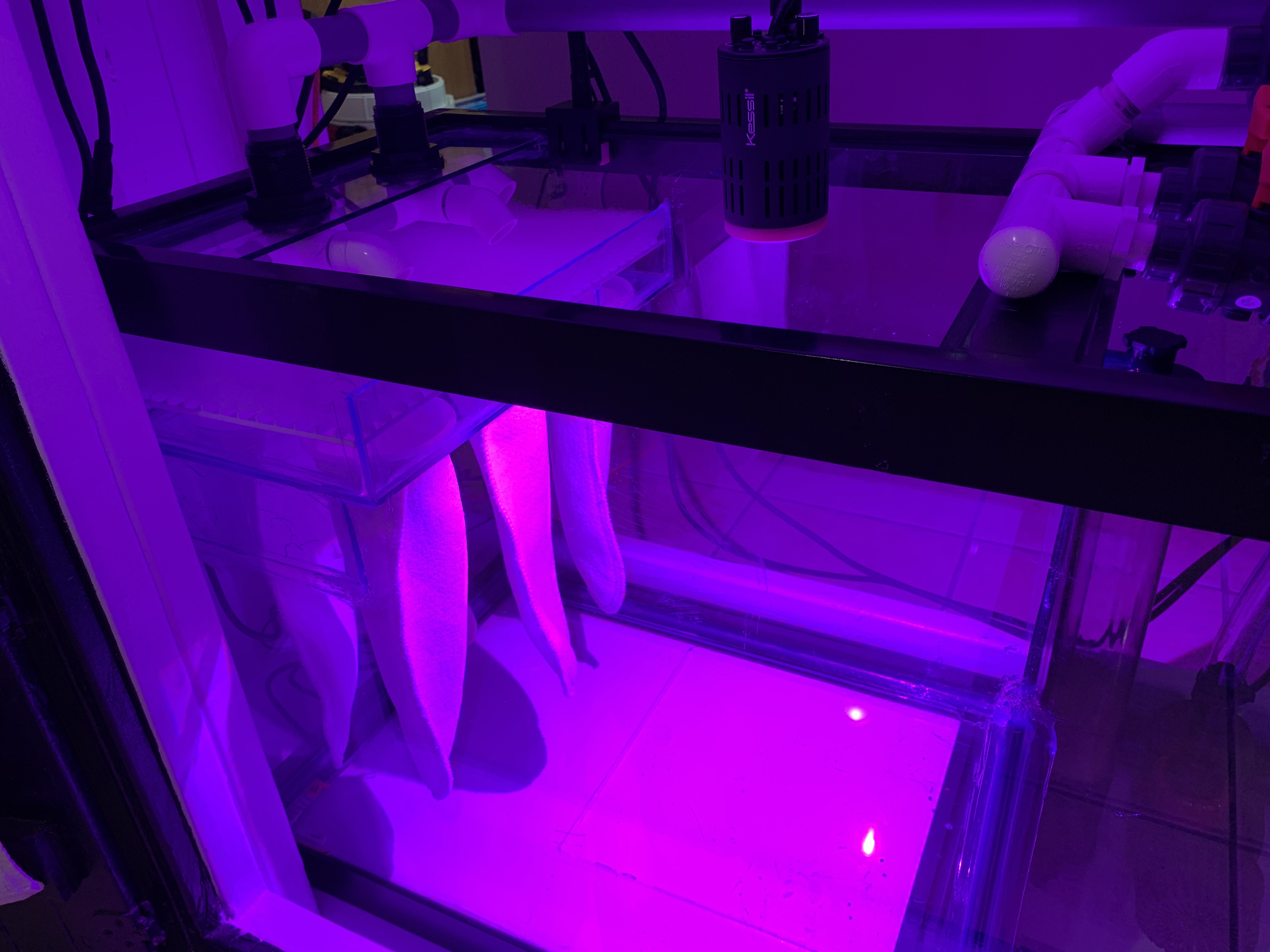

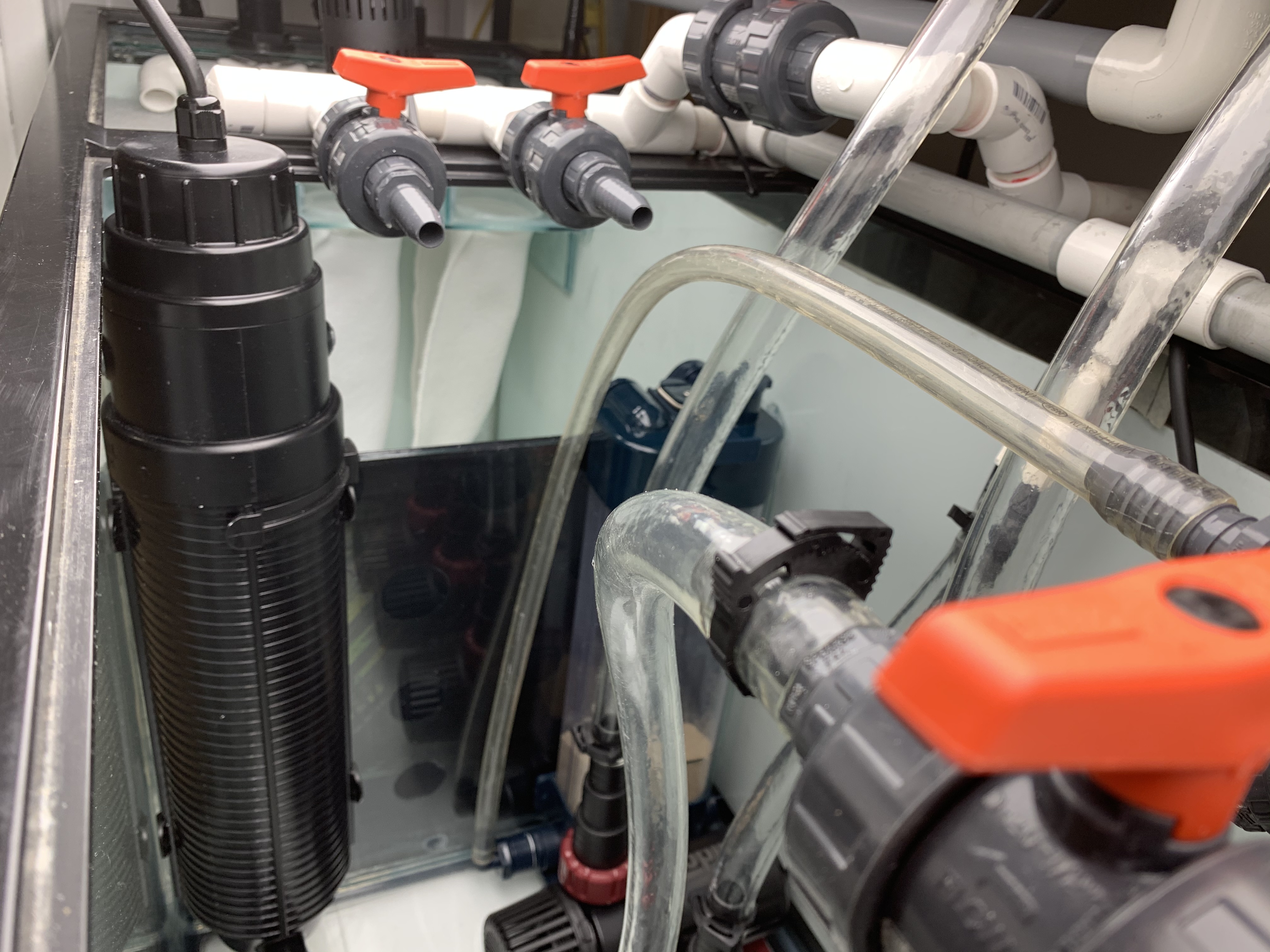

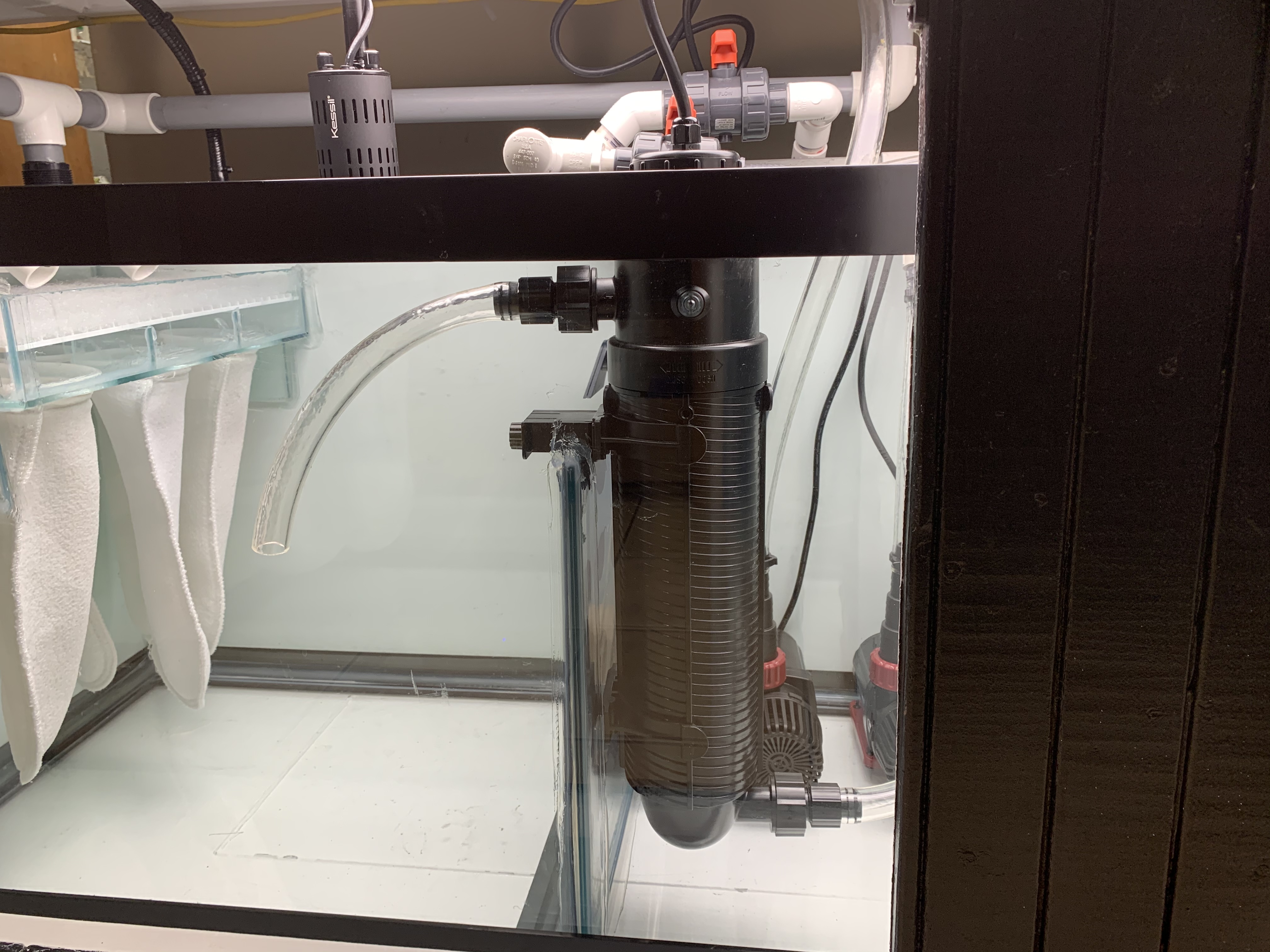

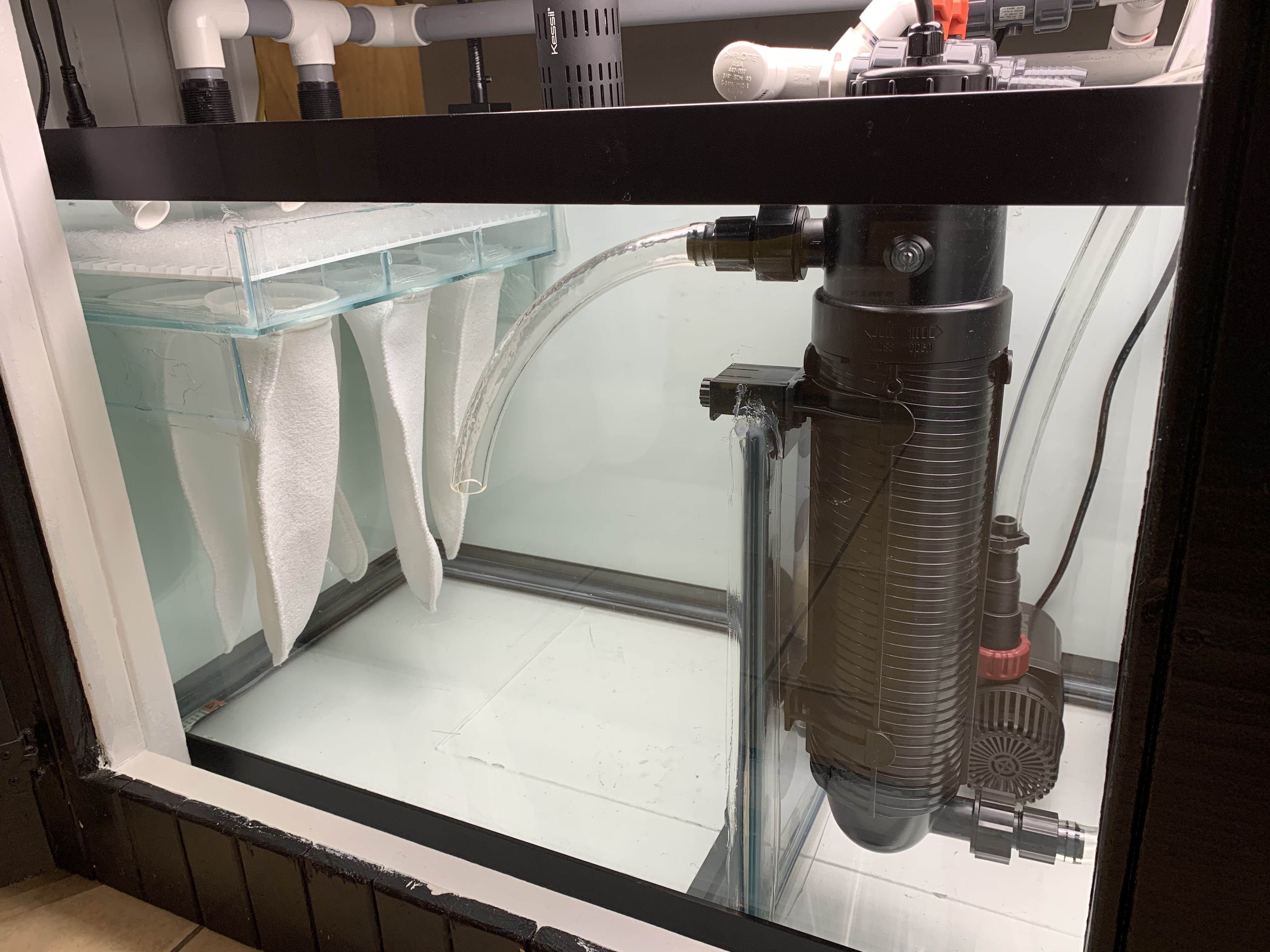

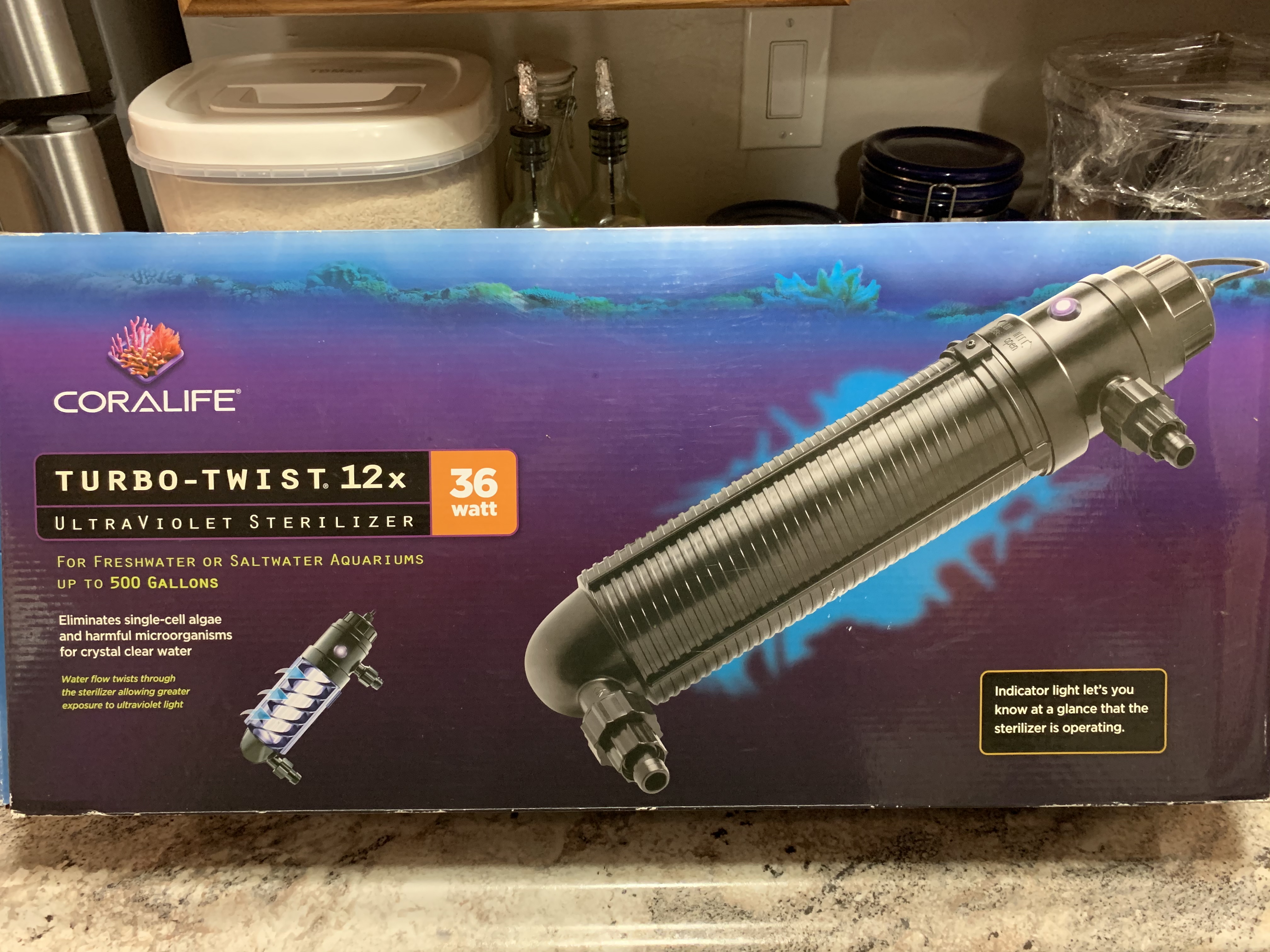

Also installed 36 watt turbo twist UV sterilizer

Put some white acrylic on the back and sides of the sump to hide any wires that run behind it


editour2

Junior Member
Rating - 100%
29   0   0
Location
Suffolk County
Very nice setup so far.....neatness does count....and yours looks great. I'm a little confused...in the first post you said you moved the fish to a 500 gallon tank.....so that's another tank you have in addition to this new 235 gal tank?


Nesty427

Member
Manhattan Reefs
Rating - 100%
30   0   0
Location
Bronx, New York
Yes I have multiple tanks
55 freshwater

24gallon jbj

54 gallon corner

500 gallon freshwater

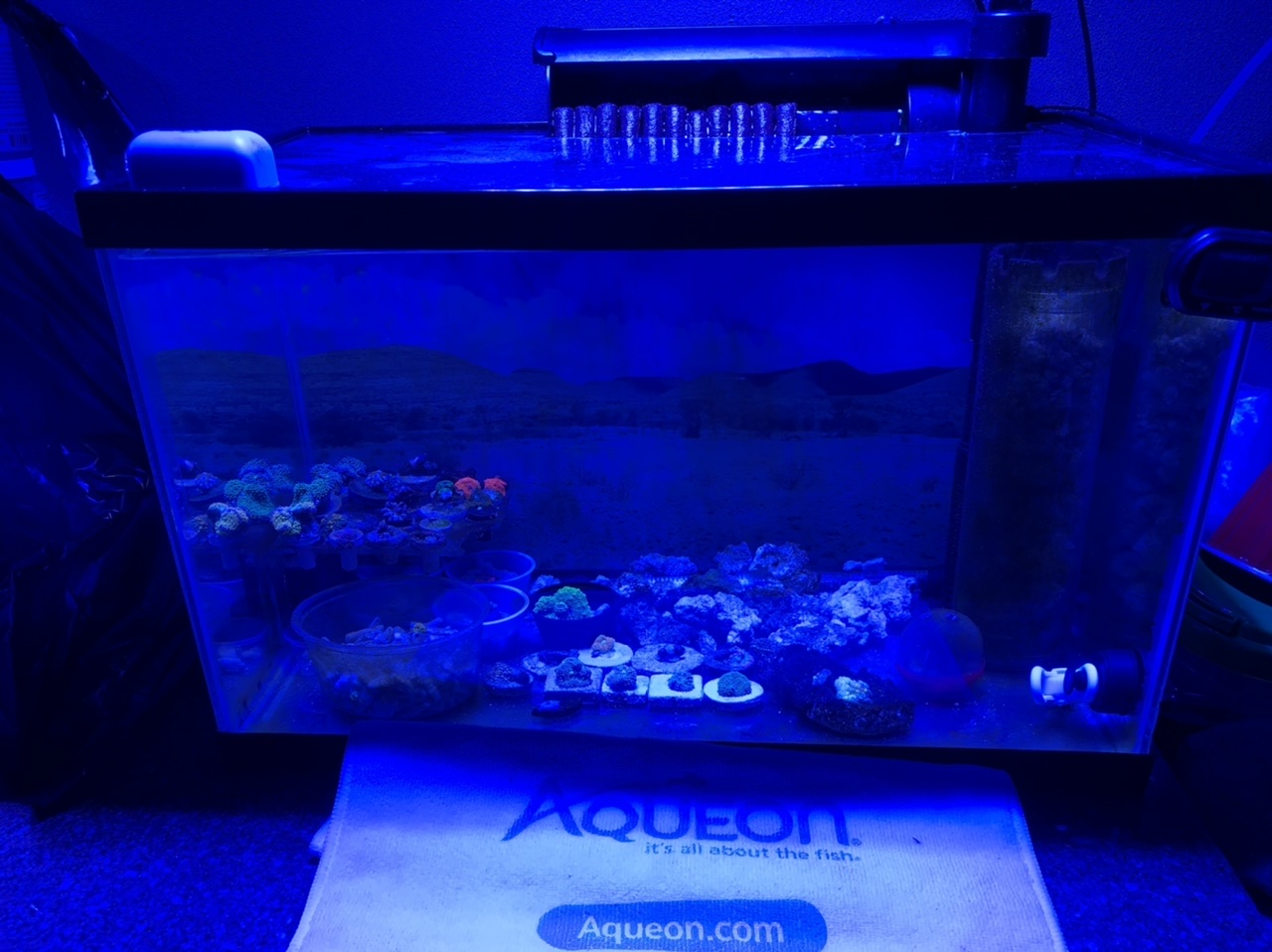

10 Gallon frag tank
30 Gallon frag tank
12 Gallon at work

10 Gallon freshwater at work
