Apex Setup

[SanmanReefer]

I'm going to text you

Absolutely bro, anytime.



[mu8st7ang]

sorry crazy day at work couldnt log on. I still cannot get my unit to be viewed i have it plugged in hard wired and everything



[mu8st7ang]

nyc never got your pm



[mu8st7ang]

is the ip and the gateway the same numbers? also i hae it setup as 192.168.0.165 cause my system goes from 100-163 when i typr that address in a page comes up says aquacontrollerapex on the top but the page is blank?



[ReefMonkey13]

Do you have the Apex Display? If you do, the check the IP Address of the apex and see if that matches the IP address on the router its connected to.



[Widdy]

is the ip and the gateway the same numbers? also i hae it setup as 192.168.0.165 cause my system goes from 100-163 when i typr that address in a page comes up says aquacontrollerapex on the top but the page is blank?

No, gateway would the IP of your router. More than likely it'll be 192.168.0.1 for your configuration.

Apex IP: 192.168.0.165
Gateway: 192.168.0.1



[mu8st7ang]

yeah i have
apex ip 192.168.0.165
gateway 192.168.0.1
netmask 255.255.255.0
still doesnt work ugh



[mu8st7ang]

what is open xml?



[Widdy]

You're just trying to get your Apex on your network at this time?

Open XML tells the Apex to allow unauthenticated access to XML feeds outputting from your Apex. Mainly used for data collection.



[mu8st7ang]

yea just trying to get it on the network for now.
ok the xml is off that doesnt mean anything right?



[mu8st7ang]

If this pictures shows up it will how it makes a we page but the page is blank. Also it's not showing up on my network even though its connected



[ReefMonkey13]

refresh the screen . . this happens to me from time to time, where the screen gets stuck after i enter the admin password



[mu8st7ang]

No it stays blank

This is what my port forward looks like



[Widdy]

Looks like it's on the network, but your browser isn't displaying the page. Try a different browser.



[mu8st7ang]

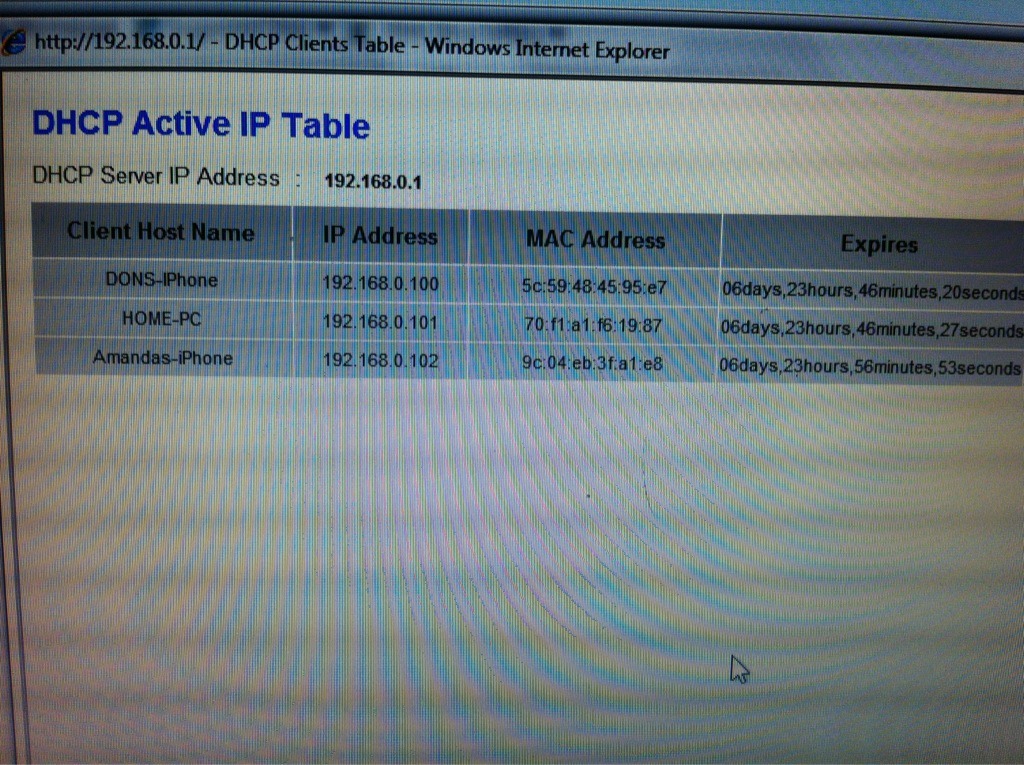

Here is what is on my network and the apex is not listed
Sorry for all the pics just figure it's easier that way



[Widdy]

That's the DHCP table. If you assigned a static IP (192.168.1.165) to your Apex it wouldn't appear on that list. If you have a tab for ATTACHED DEVICES (some do, some don't) on the router configuration page, it'll show up there.



[SanmanReefer]

Looks like it's on the network, but your browser isn't displaying the page. Try a different browser.

+1. It seems you are using Explorer. I personally like Firefox. Try that. Hope that helps buddy.



[mu8st7ang]

im going to try firefox now but it says static deices attached zero



[Widdy]

Interesting. The tab named Aquacontroller Apex tells me that the browsers is connected to your Apex, just the dashboard isn't rendering under IE.

Open a Command Prompt and enter ping 192.168.0.165 and you should get 3 responses from your Apex. This will determine connectivity between your PC and the Apex.



[mu8st7ang]

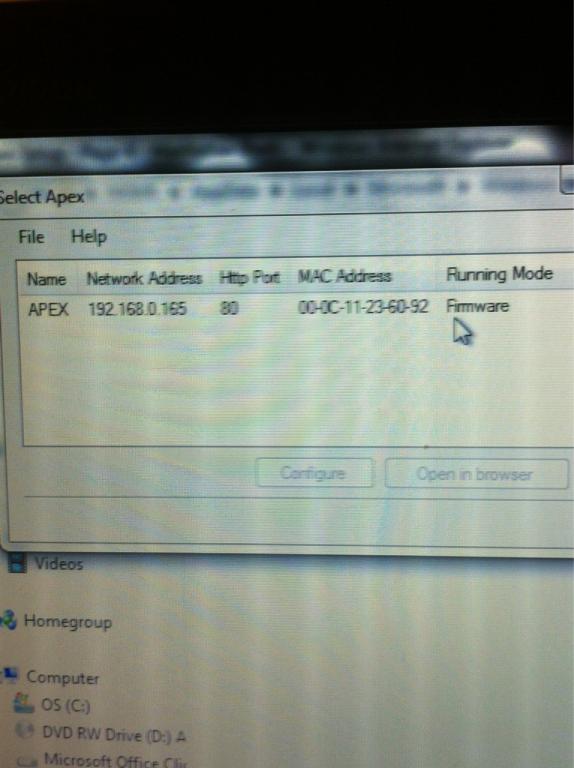

I just ran the software and it shows it there
