Elos 70

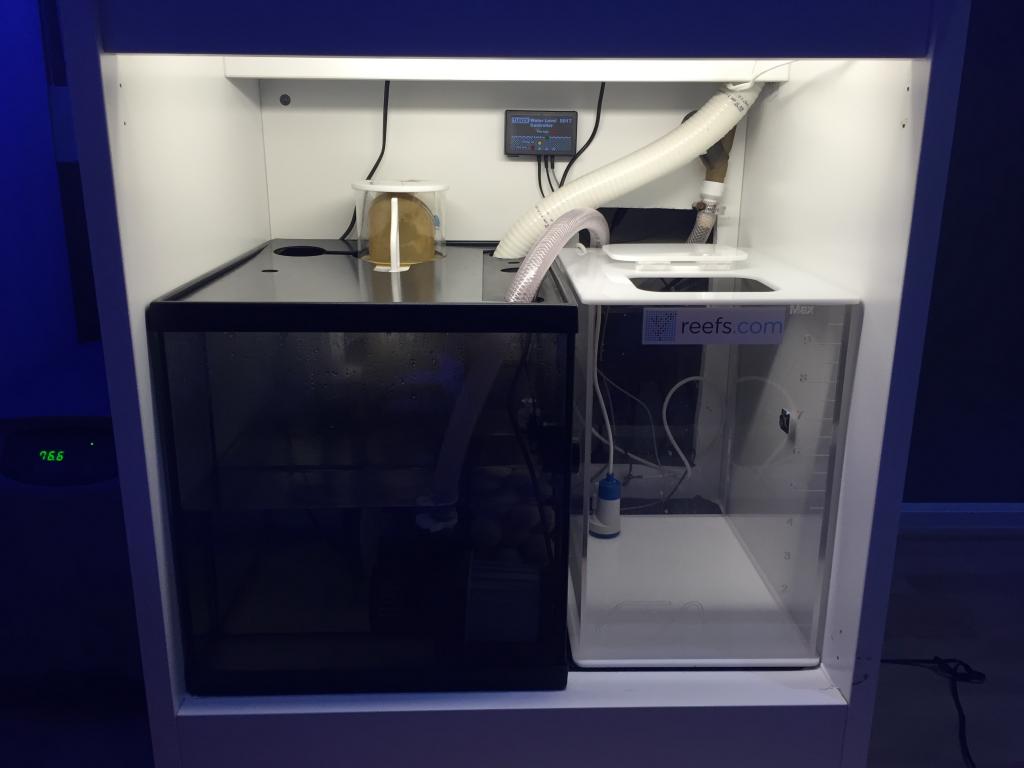

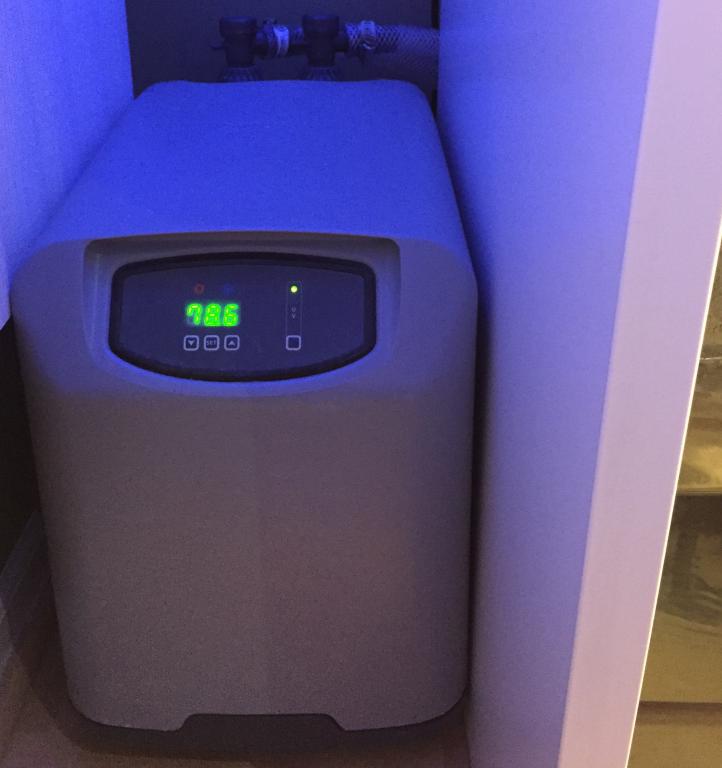

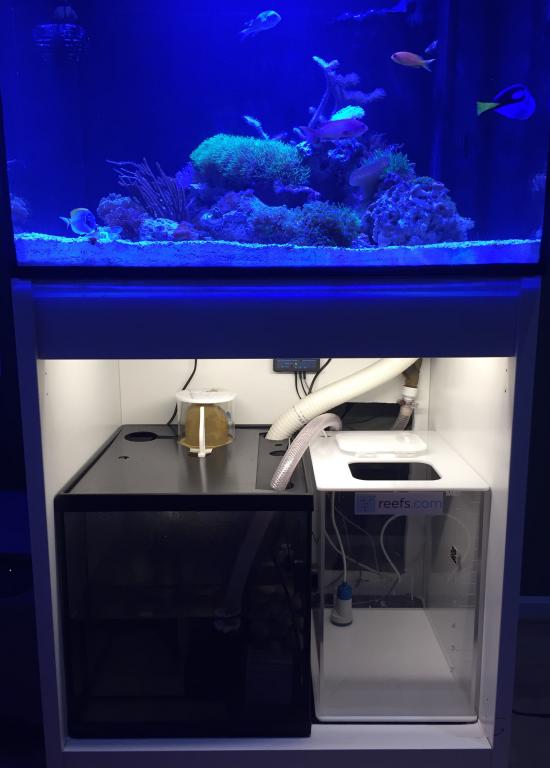

A closer look at the service area in the stand. I modified the original Elos sump to make it more functional. The drain goes into the first small chamber where I have a 4"/200 micron sock, under the bubble trap into second chamber where I'll place a Chemipure Blue bag, then into the third chamber where I have 1 quart of Marinepure spheres, from there into the skimmer section where an AquaMaxx SC1 cone sits. The clean water goes from there to the return pump section (originally the top off section). I'm using a Jebao DC-6000 return pump w/speed controller, dead silent. Next to the sump sits an Elite Aquatics 10ga ATO acrylic container, with a Tunze ATO w/Kalk reactor. Eventually I'll place a IM reactor w/biopellets in the sump. All the wiring is gonna be zip tied together to cleanup the service area. The temp is controlled by a Teco chiller with built in UV filter and heater. I'm probably gonna place a Cobalt heater in the sump as redundancy controlled by the Reef Keeper Elite w a probe in the DT. I'm very pleased with the results so far, it's clean, and more importantly quiet.
