Old 05-03-2010, 09:28 AM
Senior Member
Awibrandy's Avatar
Join Date: Apr 2003
Location: Far Rockaway
Posts: 10,121
Reefer Ratings: (100 (100%)
Friends: (140)
Send a Private Message
Looking Good!!!!!!!!!!!!!!!!!!!!!!!
__________________
Yo soy Boriqua! Pa' que lo sepas!!
Reply With Quote
Old 05-03-2010, 10:14 AM
Senior Member
ctxmonitor's Avatar
Join Date: Jan 2005
Location: Brooklyn, NY
Posts: 2,354
Reefer Ratings: (43 (100%)
Friends: (22)
Send a Private Message

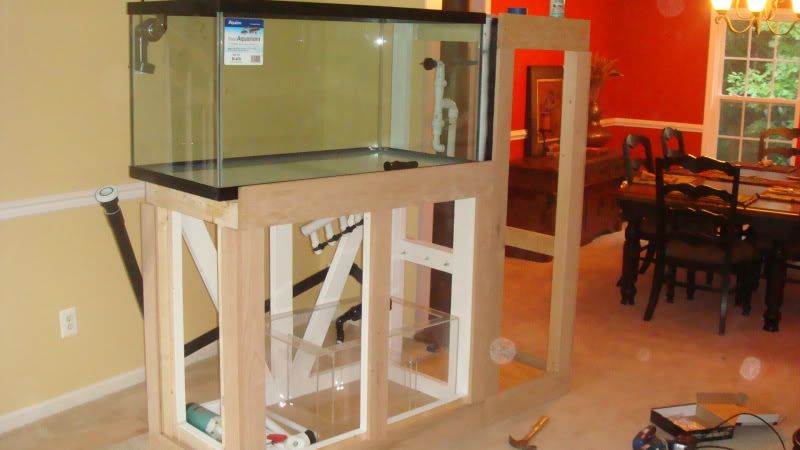

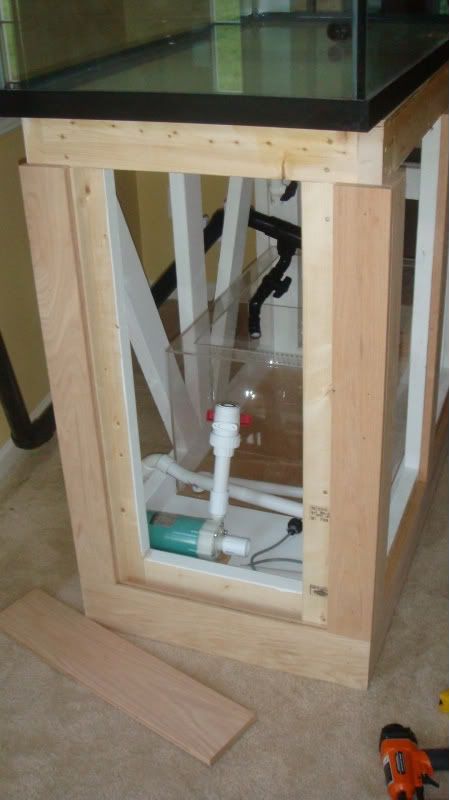

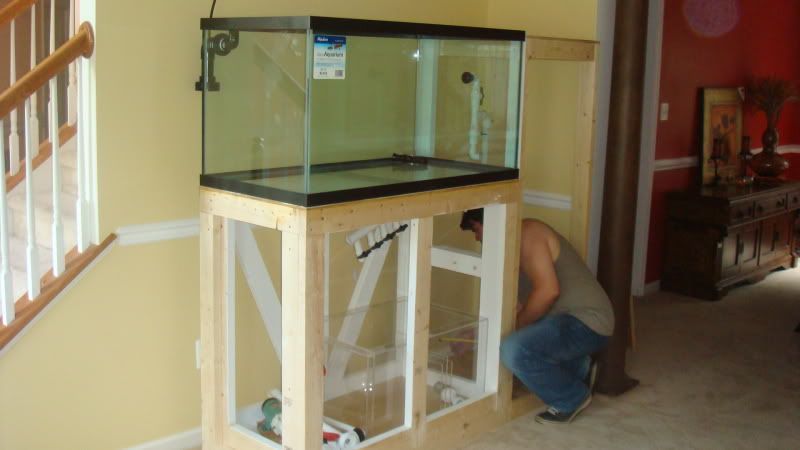

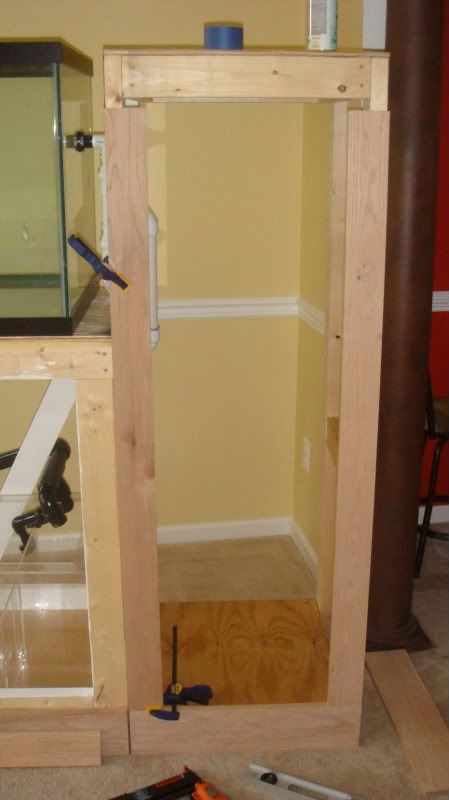

nice job on the stand. Look like its going to be a killer tank! Also like to see how the skimmer stack up. What kind of pump does it uses?
Reply With Quote
Old 05-03-2010, 05:58 PM
Senior Member
kaOzGrUnT's Avatar
Join Date: Feb 2010
Location: Queens
Posts: 236
Reefer Ratings: (2 (100%)
Friends: (1)
Send a Private Message My Facebook
Its nice to have the space to built what you want :-)
i had to do my stand in the kitchen on an appartment :-( lol
__________________
It's God's job to forgive my enemies, my job to arrange the meeting.
Reply With Quote
Old 05-06-2010, 06:02 PM
Bad Mutha Shut Your mouth
henrystyle's Avatar
Join Date: Jun 2009
Location: East Stroudsburg, PA
Posts: 946
Reefer Ratings: (14 (100%)
Friends: (22)
Send a Private Message My Facebook
Quote:
Originally Posted by ctxmonitor View Post
nice job on the stand. Look like its going to be a killer tank! Also like to see how the skimmer stack up. What kind of pump does it uses?

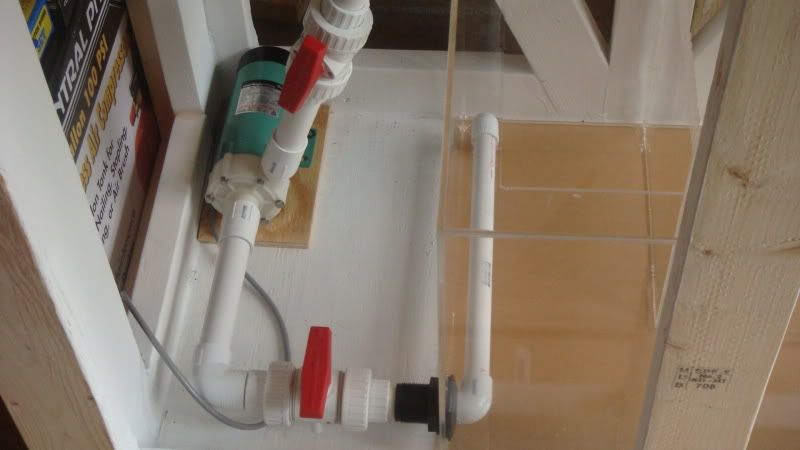

Thanks all. It uses a Atman PH2500 pump which has a pinwheel.
__________________
Ant Henry - My 120g tank thread: https://www.manhattanreefs.com/forum/...086#post766086
Reply With Quote
Old 05-08-2010, 12:17 AM
Bad Mutha Shut Your mouth
henrystyle's Avatar
Join Date: Jun 2009
Location: East Stroudsburg, PA
Posts: 946
Reefer Ratings: (14 (100%)
Friends: (22)
Send a Private Message My Facebook

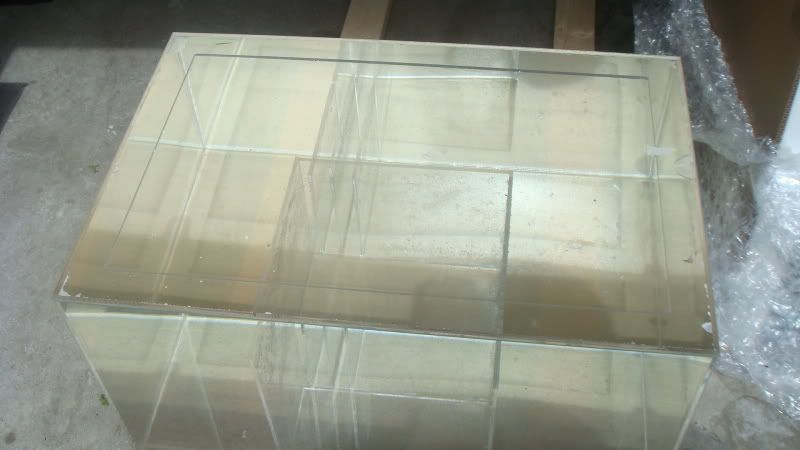

Got my sump acrylic in the mail today so I decided to start putting it together.

Setup my routing station. lol

1st thing was the deep sand bed wall. The design calls for teeth to be cut for the water to return to the sumps return section.


Had to improvise with the router. One main piece was missing thats why you see the 2x4 and the clamp.
__________________
Ant Henry - My 120g tank thread: https://www.manhattanreefs.com/forum/...086#post766086
Reply With Quote
Old 05-08-2010, 12:21 AM
Senior Member
ryangrieder's Avatar
Join Date: Jun 2009
Location: Northern Jersey
Posts: 3,924
Reefer Ratings: (16 (100%)
Friends: (23)
Send a Private Message My Facebook
good luck with it man. cant wait to see it finished and filled!
__________________
Fish Are Friends. . . Not Food . . . OR ELSE


Solana System...
My OLD Set Ups...
My Old 57 Rimless Reef Tank...
My Old 46G Bow Front Reef Tank...
My OLDER 46G Bow Front Tank...
My Old 29G Bio Cube Reef Tank...
Reply With Quote
Old 05-08-2010, 12:36 AM
Bad Mutha Shut Your mouth
henrystyle's Avatar
Join Date: Jun 2009
Location: East Stroudsburg, PA
Posts: 946
Reefer Ratings: (14 (100%)
Friends: (22)
Send a Private Message My Facebook
Couldn't stop there. Decided to put the 4 walls of the sump up.

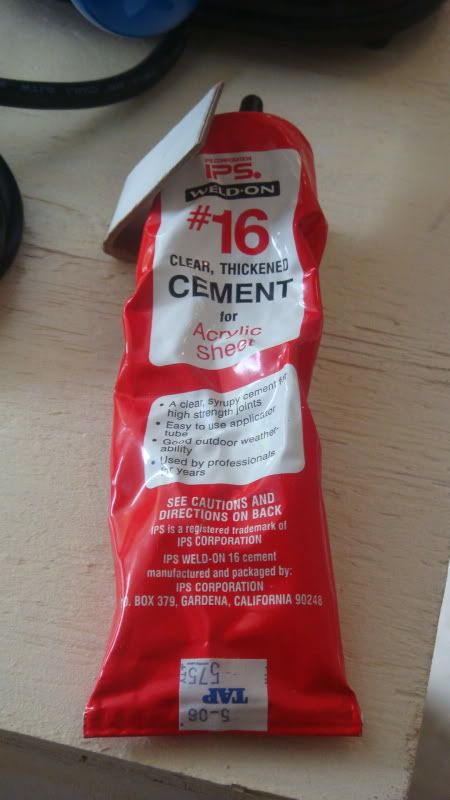

Tools of the trade.

Started with the front.




My son, Ant Jr.

Done deal. Tomorrow I will route the top brace and attach it. Then put the dsb section and bubble trap in place.



__________________
Ant Henry - My 120g tank thread: https://www.manhattanreefs.com/forum/...086#post766086

Last edited by henrystyle; 05-09-2010 at 10:07 AM..
Reply With Quote
Old 05-08-2010, 09:15 PM
Bad Mutha Shut Your mouth
henrystyle's Avatar
Join Date: Jun 2009
Location: East Stroudsburg, PA
Posts: 946
Reefer Ratings: (14 (100%)
Friends: (22)
Send a Private Message My Facebook
SUMP-part 2
Time to route the top brace. Today the bottom will become the top and the top will be the bottom.
Doing a 2" euro brace..Marked it out on the acrylic.

Bought a router guide just for this. Keeps the router straight for a nice straight cut.

Goes on simple and worked great.

I drilled a starter hole and ran some masking tape along the top edge so that the router guide does not scratch the acrylic.







Brace routing done!
__________________
Ant Henry - My 120g tank thread: https://www.manhattanreefs.com/forum/...086#post766086
Reply With Quote
Old 05-08-2010, 09:18 PM
Bad Mutha Shut Your mouth
henrystyle's Avatar
Join Date: Jun 2009
Location: East Stroudsburg, PA
Posts: 946
Reefer Ratings: (14 (100%)
Friends: (22)
Send a Private Message My Facebook

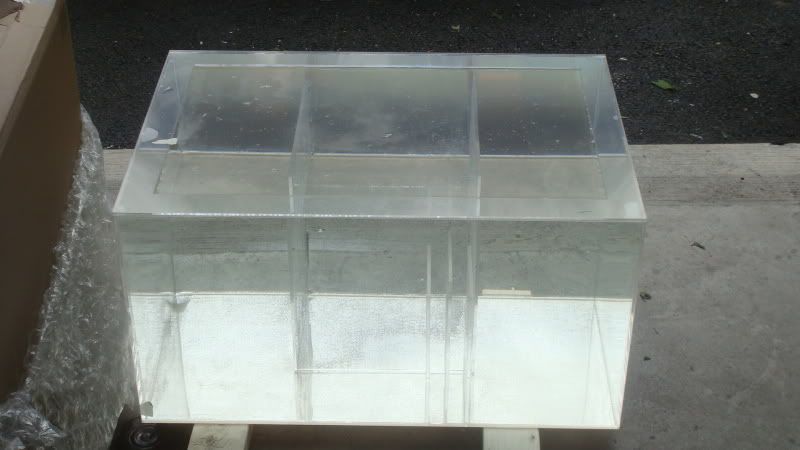

Now attaching the bottom, bubble trap and dsb section walls. Had to get the skimmer to measure how much space will be needed. Want to be able to remove it with ease also leaving a little space just in case I switch skimmers in the future.

Put anything I could find in my garage to put some weight on top after applying the solvent.


Now for the bubble trap. Each panel is 1" apart. The middle panel being 1" higher than the other 2.

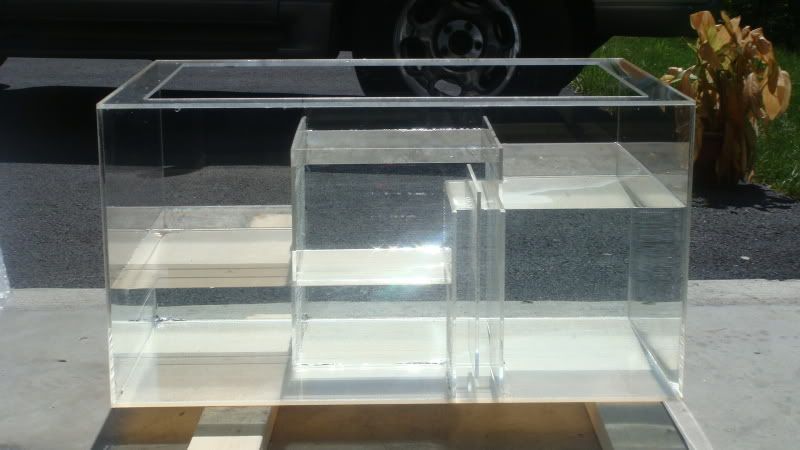

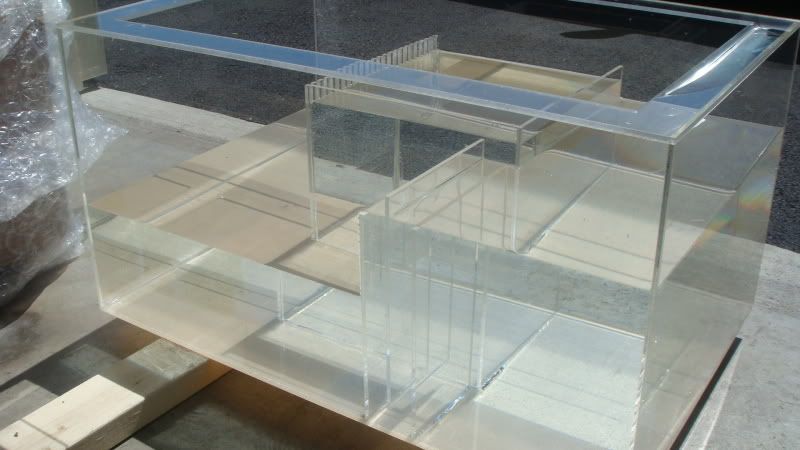

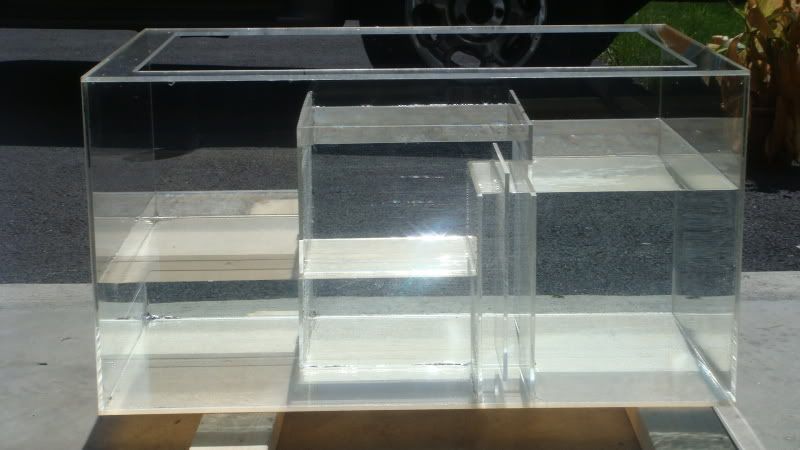

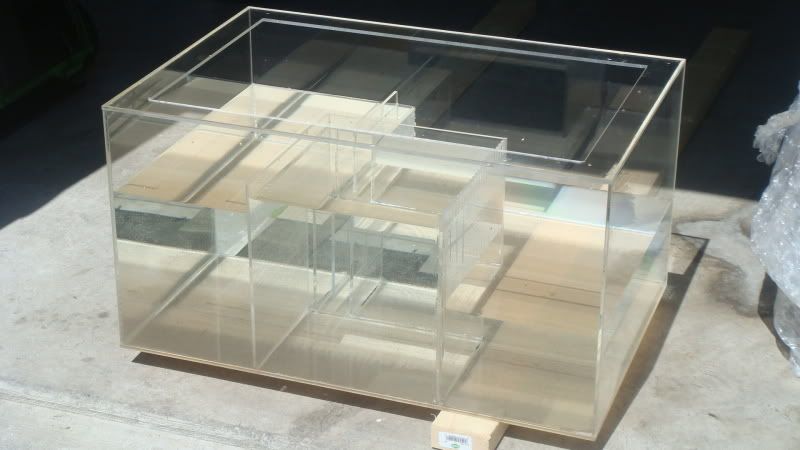

Ripped off the paper, sump done.




Router guide served its purpose. It will be going back to home depot! lol

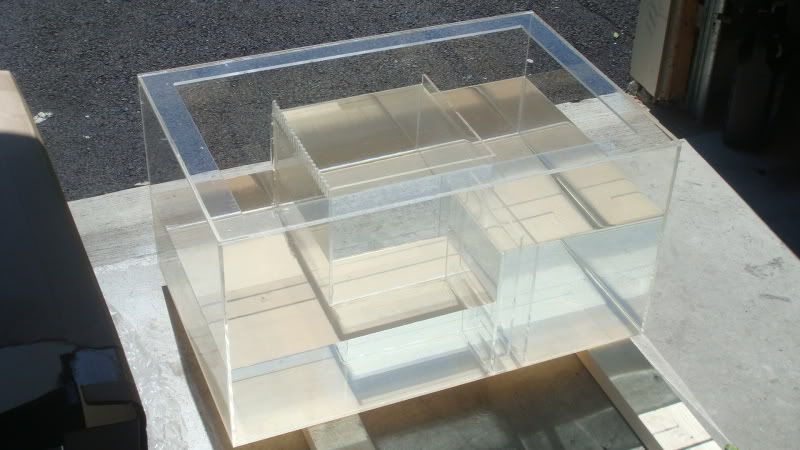

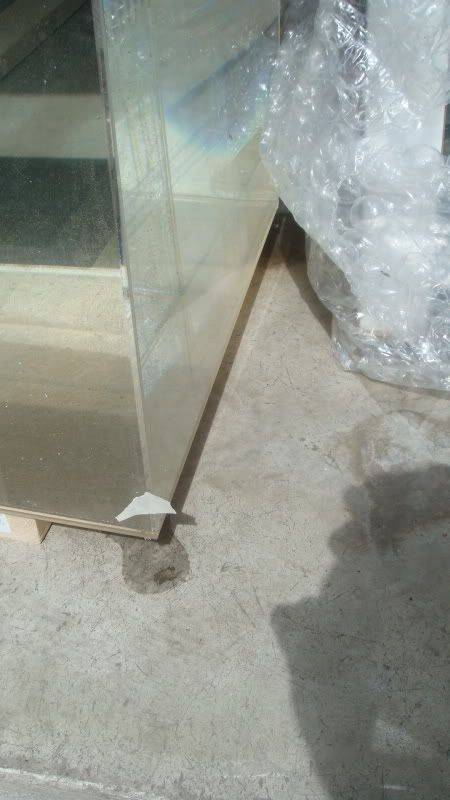

Tomorrow will be the moment of truth...Water/Leak test! looks good. Came out better than I expected.
__________________
Ant Henry - My 120g tank thread: https://www.manhattanreefs.com/forum/...086#post766086
Reply With Quote
Old 05-08-2010, 09:34 PM
reef obsessed
NL146's Avatar
Join Date: Oct 2009
Location: Brooklyn
Posts: 2,278
Reefer Ratings: (53 (100%)
Friends: (13)
Send a Private Message
Looking good!
